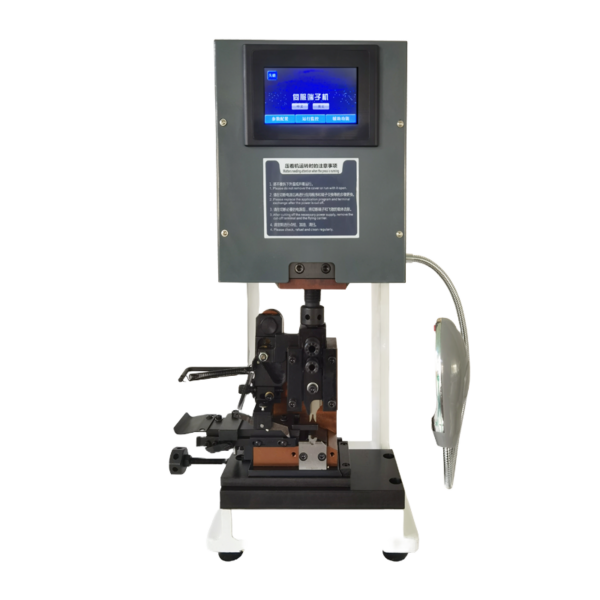

KK-SF2T Servo Terminal Crimping Machine

2T Crimping Force | Servo Precision | ≤4mm² Capacity

The KK-SF2T is a compact and high-precision terminal crimping machine powered by a servo motor. Designed for small to medium wire applications (≤4mm²), it features programmable peak position control and is ideal for electronics assembly, automotive connectors, and fine wiring tasks. The servo-driven architecture ensures stable, consistent crimping with customizable stroke and voltage settings.

🔧 Technical Specifications

Parameter	Specification
Model	KK-SF2T
Motor Type	Servo Motor
Crimping Force	2000KN
Crimping Range	≤4mm²
Working Voltage	AC220V 50/60Hz (Customizable: 110V)
Default Stroke	30mm (Customizable to 40mm)
Programmable Control	Peak Position Adjustment
Compatible Dies	Same as KK Series No.1
Pressure Monitor	Optional Add-on
Dimensions	240 × 280 × 630 mm
Weight	45kg

🌟 Key Features

• ⚙️ Servo Motor Control for precision crimping
• 📊 Programmable Peak Position ensures accuracy & repeatability
• 🔧 Customizable Stroke up to 40mm for larger terminals
• 📦 Compact & Lightweight at just 45kg
• 🔄 Die Compatibility with KK series standard tooling
• 🔍 Optional Pressure Monitor for quality assurance

🧩 Ideal Applications

• Consumer Electronics Assembly
• Automotive Connectors
• Precision Cable Harnessing
• Small-Batch Industrial Prototyping

❓ FAQ – KK-SF2T Crimping Machine

🔌 Is the machine programmable?

Yes, it supports programmable peak position for ultra-precise crimping control.

⚡ Can I customize the voltage or stroke?

Yes, voltage can be customized to 110V and stroke up to 40mm.

🔄 Are the dies compatible with other KK models?

Yes, it shares die compatibility with the KK series (No.1 type dies).

📏 Is this machine suitable for large wires?

No, this machine is optimized for fine wires up to 4mm².
