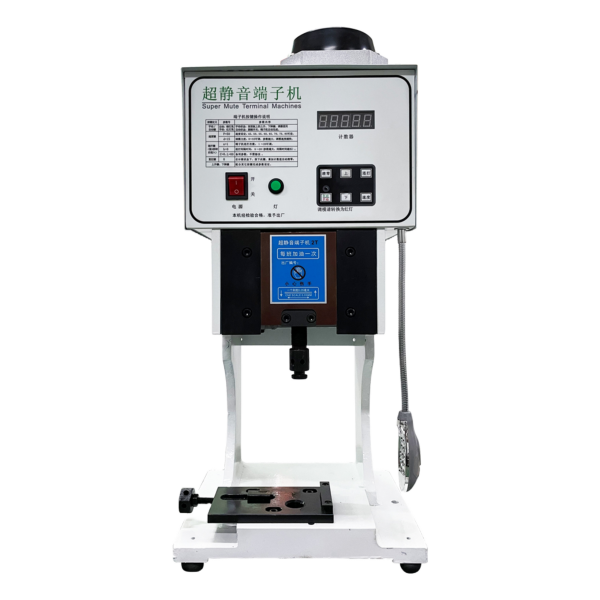

2T Terminal Crimping Machine – Model KK-2T
The XQ-2T terminal crimping machine is a compact and efficient benchtop press designed for wire terminals up to 4mm². Its powerful performance, adjustable stroke, and compatibility with multiple die types make it a versatile tool for wire harness assembly lines.
| Model | KK-2T |
|---|---|
| Motor Power | 0.75 KW |
| Mainboard Power | 1.5 KW |
| Crimping Range | Up to 4 mm² |
| Stroke Length | 30 mm (Default) / 40 mm (Optional) |
| Working Voltage | AC 220V, 50/60Hz (Custom 110V Available) |
| Crimping Speed | Adjustable 40–80 cycles/min |
| Dimensions | 240 × 280 × 630 mm |
| Machine Weight | 45 kg |
| Compatible Dies | Horizontal, vertical, single-pin, and four/six-sided dies |
Additional Info:
• Default stroke is 30mm; optional 40mm available
• 110V voltage customization available
• Pressure sensor can be installed for crimp force monitoring
• Default stroke is 30mm; optional 40mm available
• 110V voltage customization available
• Pressure sensor can be installed for crimp force monitoring
