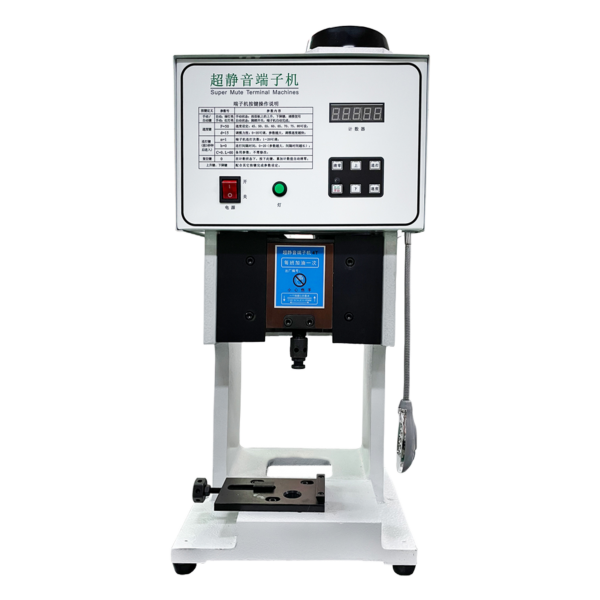

6T Terminal Crimping Machine – KK-4T (Copy)

The KK-2T 2T Terminal Crimping Machine is a compact yet powerful bench-top solution designed for precision terminal crimping in high-volume wire harness production. Equipped with a 0.75KW motor and a 1.5KW control board, this machine delivers consistent force and stability across various wire types up to 4mm².
With a default stroke of 30mm (customizable to 40mm), the KK-2T offers flexibility for different terminal sizes and crimping needs. The working voltage is AC220V (50/60Hz), with an optional configuration of 110V for international usage.Compatible with a wide range of dies, this model supports seamless integration into existing production lines. Additionally, it supports optional add-ons like a pressure monitoring system to ensure crimp quality and production reliability.Ideal for automotive, industrial control, and electronics manufacturing, the KK-2T stands out as a durable, efficient, and user-friendly choice in the 2T crimping segment.

KKL-6T Heavy-Duty Terminal Crimping Machine

1.8KW Industrial Power | Up to 30mm² Capacity

Designed for high-demand cable and wire harness applications, the KKL-6T Terminal Crimping Machine combines powerful 1.8KW motor performance with extreme precision. Supporting wires up to 30mm² and compatible with standard dies from the 2T–4T series, this machine offers stability, customization, and crimping consistency — making it ideal for automotive, industrial, and electrical manufacturing.

📩 Get Factory Quote Now

🔧 Technical Specifications

Parameter	Specification
Model	KKL-6T
Motor Power	1.8KW
Control Board Power	3.8KW
Crimping Range	≤30mm²
Working Voltage	AC220V 50/60Hz (Optional: 110V)
Stroke	30mm (Optional up to 40mm)
Crimping Speed	40–80 adjustable strokes/min
Compatible Dies	2T–4T Series Standard Dies
Pressure Monitor	Optional
Dimensions	270 × 300 × 720 mm
Weight	75kg

🌟 Why Choose the KKL-6T?

⚡ Heavy-Duty Power: 1.8KW motor delivers robust crimping force
🔌 Large Capacity: Handles wire sizes up to 30mm²
📊 Precision Control: Optional pressure monitoring ensures consistency
🏗️ Industrial Construction: Built for 24/7 factory environments
📏 Compact Footprint: Saves space without sacrificing performance
🔄 Universal Compatibility: Uses 2T–4T standard interchangeable dies

📌 Application Scenarios

Automotive and Electric Vehicle Wiring
Heavy Industrial Cable Harnessing
Solar Power & Renewable Energy Systems
Large Electrical Distribution Panels

❓ Frequently Asked Questions

🔗 What types of terminals can the 6T machine handle?

Open-barrel, U-type, O-type, and other heavy-duty terminals for wire sizes up to 30mm².

📈 Is the pressure monitor built-in?

No, but it is available as an optional add-on for quality assurance and process monitoring.

🔄 Are the dies interchangeable with other KK models?

Yes, all dies from 2T to 4T models are fully compatible with the KKL-6T machine.
