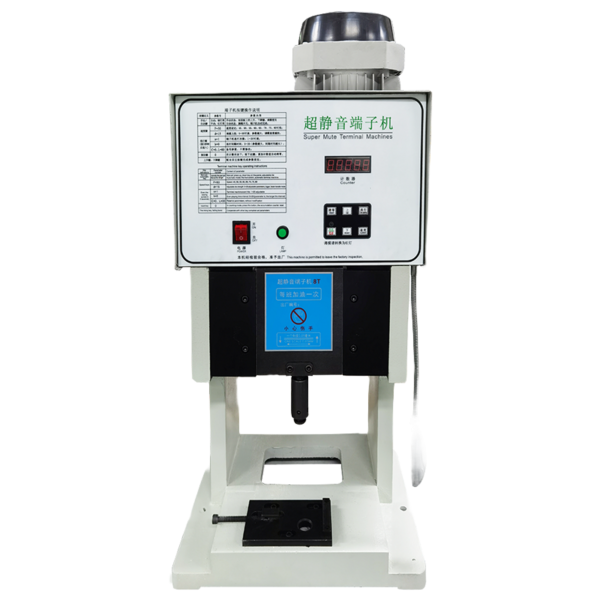

8T Terminal Crimping Machine (KK-8T)
The KK-8T Terminal Crimping Machine is a powerful solution designed for high-performance terminal applications up to 35mm². With an integrated 3.0KW motor and advanced control board, it delivers strong, consistent crimping results with precision. Its modular design supports various dies and optional upgrades like pressure monitoring, making it ideal for automotive, new energy, and industrial cable harness production lines.
- 🔧 Max Crimping Range: ≤35mm²
- ⚡ High-efficiency 3.0KW Motor
- 🎯 Customizable Stroke: 30mm / 40mm
- 📏 Dimensions: 285×385×800mm
Technical Specifications
| Item | Specification |
|---|---|
| Model | KK-8T |
| Motor Power | 3.0KW |
| Control Board Power | 5.5KW |
| Crimping Range | ≤35mm² |
| Working Voltage | AC220V 50/60Hz |
| Default Stroke | 30mm (Customizable to 40mm) |
| Compatible Dies | Same as KK Series |
| Crimping Speed | 40–80 Times/Min Adjustable |
| Dimensions | 285×385×800mm |
| Weight | 95kg |
| Optional Add-ons | 110V Voltage / Pressure Monitoring |
Frequently Asked Questions
Can this machine handle heavy-duty automotive terminals?
Yes, with a crimping capacity up to 35mm² and robust 3.0KW motor, KK-8T is ideal for thick automotive and industrial cable terminals.
Is it compatible with standard applicators?
Yes, it works with standard vertical applicators (OTP and horizontal dies) used across KK crimping machine series.
Can I use it for multi-core cable?
Yes, as long as the total area does not exceed 35mm² and your terminal is designed for grouped wires.
