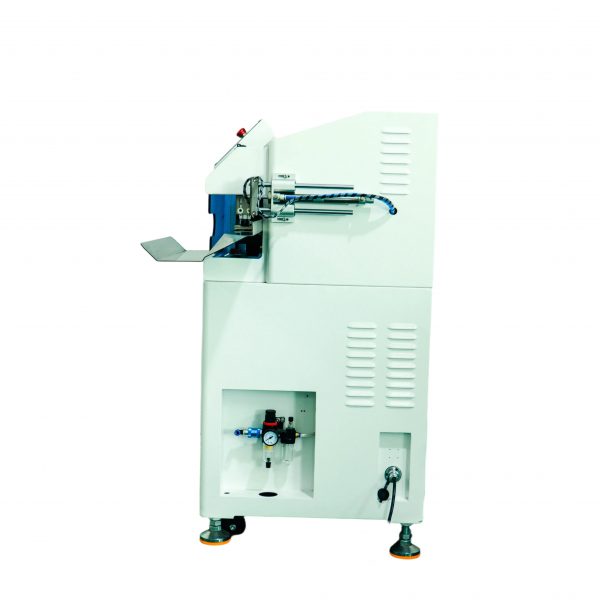

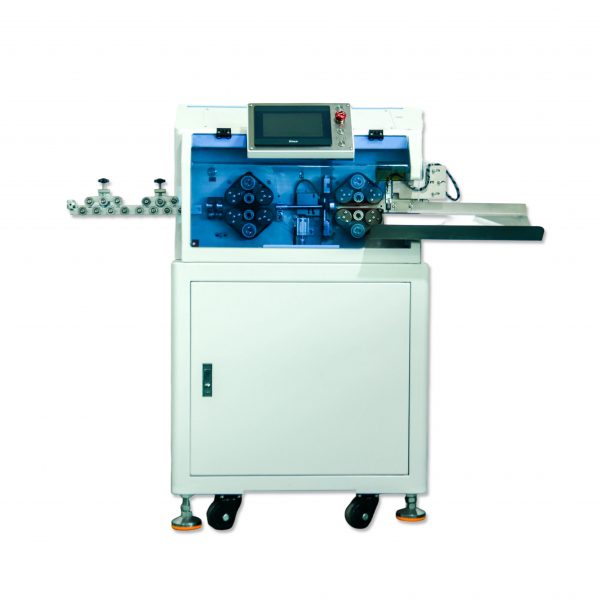

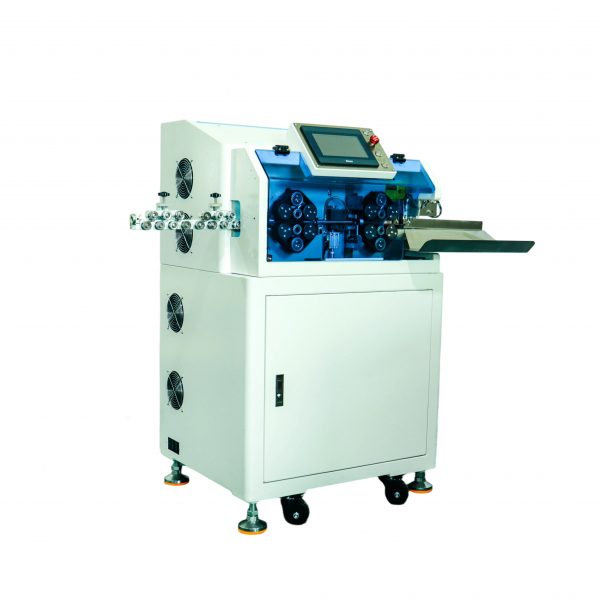

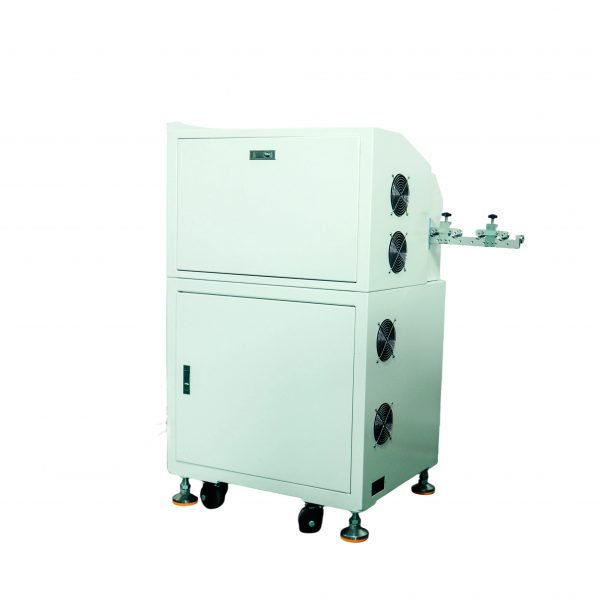

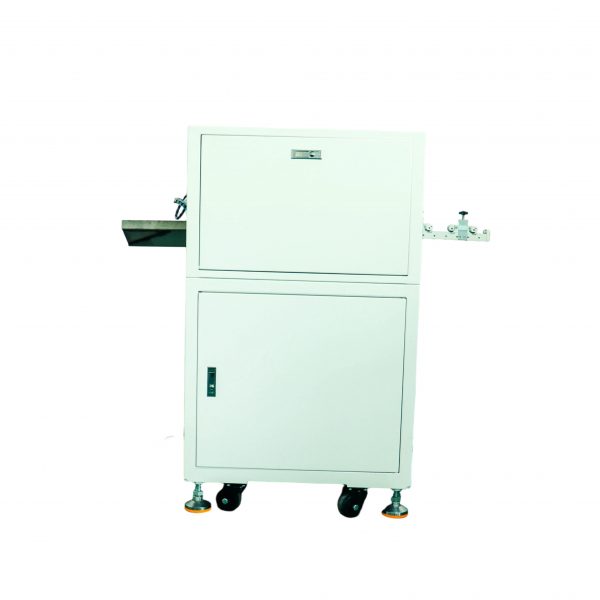

Automatic Cable Stripping Machine KK-509 – All-in-One Precision Wire Processing
The KK-509 automatic cable stripping machine is engineered for high-efficiency stripping and cutting of multi-core jacketed cables and rubber-insulated wires. Designed with a servo-driven 16-wheel system and advanced dual-layer stripping capability, it provides unmatched precision and speed for wire harness production, electrical assembly lines, and industrial automation sectors.
Main Features of KK-509 Cable Stripping Machine
- 🔧 Integrated inner/outer conductor stripping supports complex cable types with ease.
- ⚙️ Track-type 16-wheel servo drive ensures stable, synchronized wire feeding and high precision.
- 📏 Stripping Range: Front end 0.1–250mm / Rear end 0.1–100mm.
- 🔄 Wire gripper & auto-adaptive pressure control for accurate and consistent performance.
- 🖥️ 7-inch bilingual touchscreen for easy setup and program control (up to 99 presets).
Technical Specifications
| Model | KK-509 |
| Cutting Length | 1mm–99,999mm |
| Stripping Length | Front: 0.1–250mm / Rear: 0.1–100mm |
| Cable OD Supported | Φ4mm–Φ12mm |
| Power Rating | 500W–1100W |
| Drive System | 16-wheel synchronized (servo + stepper motor) |
| Throughput | 400–1000 strips/hour |
| Precision | ≤0.02mm per meter |
| Blade Material | High-Speed Steel / Tungsten Carbide |
| Weight | 135 kg |
Applications of KK-509
This automatic cable stripping machine is ideal for wire harness assembly in the automotive, home appliance, electric cabinet, and power supply industries. It supports thick and complex wires with high precision, ensuring reduced labor and faster throughput.
