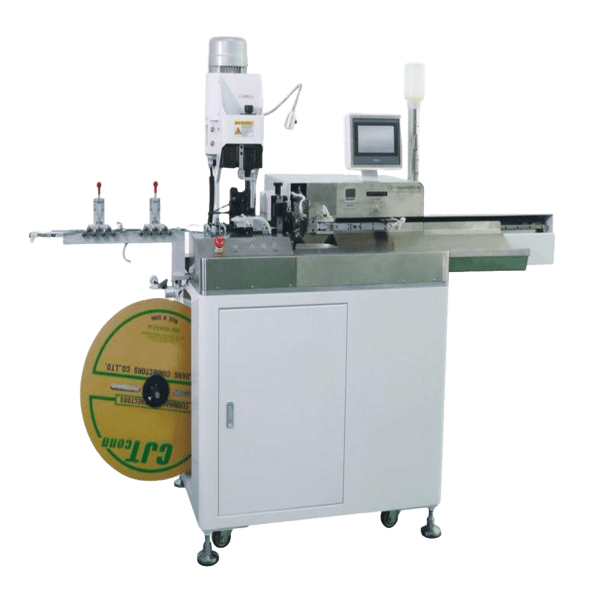

Automatic five wires one end crimping the other end tinning machine

functions & Specifications Details
Functions Wire cutting, single – end stripping, dual – end stripping, single – end half – stripping, dual – end half – stripping, single – end twisting, single – end crimping, single – end tinning, one – end crimping the other – end tinning
Adjustable Settings Knife mouth size, cutting length, stripping length, twisting strength & speed, attaching flux depth, tinning depth
Wire Range AWG#16 – AWG#30
Production Capacity 5200 – 6000pcs/hour (100mm length)
Cutting Tolerance ±0.1mm (L = 100mm)
Processing Length 10mm – 800mm (shorter wires can be customized)
Stripping Length Head: 0.1mm – 12.5mm
Blade Depth Adjustment N/A (not specified)
Detection Systems Low air pressure, no wires, bad crimping, wire knot
Power Supply AC 220V/50/60HZ
Compressed Air Requirement 5 – 7kgf (clean and dry air)
Machine Dimensions 1000×700×1500mm
Machine Weight 260kg
What It Does:
This 5-wire machine crimps one end of wires and tins the other in one go. It cuts wires 10–800mm long (±0.1mm at 100mm), strips heads up to 12.5mm, and handles AWG#16–#30 cables.



A Mitsubishi servo system drives precise settings via a touchscreen—tinning depth, stripping length, and more. It crimps with 2.0T force, turns out 5,200–6,000 wires/hour (100mm), and checks for air pressure/wire issues automatically. Perfect for quick, dual-process wire harness work.
