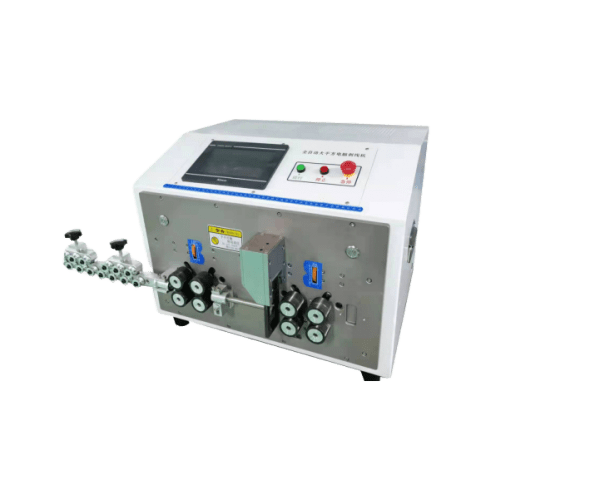

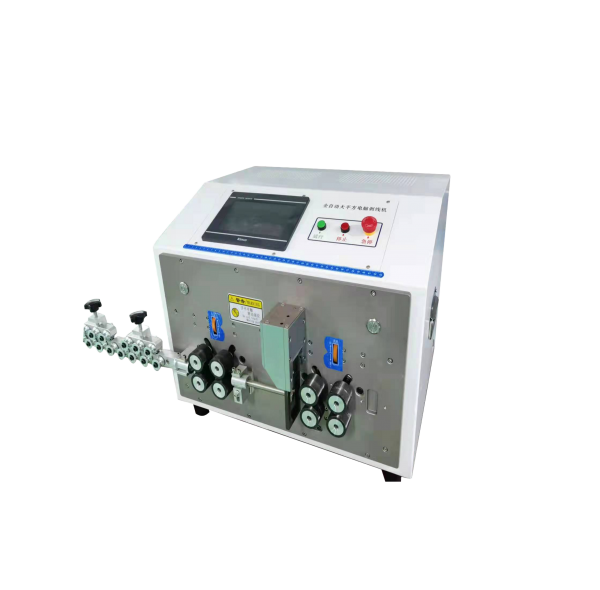

KK-507 Computerized Large Cross-Section Wire Stripping Machine
The KK-507 is a high-performance computerized large cross-section wire stripping machine designed for precision cutting and stripping of conductors up to 70 mm².
Equipped with an 8-wheel synchronized drive system, tungsten carbide blades, and a 7-inch Kinco touchscreen, it delivers consistent results with cutting tolerance ≤0.002 × L mm.
With support for mid-span stripping at up to 13 points and advanced automation features, the KK-507 is ideal for industrial cable harness production, EV wiring, and heavy-duty electrical applications.
📐 Machine Specifications
| Model Number | KK-507 |
| Function | Precision cutting and stripping of cables |
| Overall Dimensions | 530 × 430 × 330 mm |
| Weight | 45 kg |
| Display Type | 7-inch Kinco touchscreen |
| Power Input | AC 175–250V, 50/60Hz |
| Rated Power | 120–220 W |
| Cutting Length Range | 0.1 – 99,999.9 mm |
| Stripping Length Capacity | Front: 0.1–300 mm; Rear: 0.1–120 mm |
| Conductor Cutting Capacity | 1.5 – 70 mm² |
| Cutting Tolerance | ≤ 0.002 × L mm |
| Mid-Span Stripping | Up to 13 locations |
| Conduit Diameter | 6 – 19 mm |
| Blade Material | Tungsten carbide / High-speed steel |
| Drive Mechanism | 8-wheel synchronized drive |
| Stripping Capacity | 800 – 2,000 pcs/hour |
| Wire Pressure Control | Yes |
| Pulse Equivalent | Zero deviation within 5 meters |
| Programmable Timer & Quantity | 1 – 999,999 |
| Blade Stepping Accuracy | 0.1 mm/step (silent hybrid stepper motor) |
| Automation Features | Auto wire feeding/ejection, programmable timer start |
🔧 Key Features
- ⚙️ Handles large cross-section conductors up to 70 mm²
- 🌀 8-wheel synchronized drive ensures stable and slip-free feeding
- 🎯 High accuracy cutting with ≤0.002 × L mm tolerance
- 🖥️ 7-inch Kinco touchscreen for intuitive operation
- 🪓 Tungsten carbide blades for long service life
🏭 Typical Applications
- 💡 Heavy-duty cable harness processing
- 🚗 EV charging cable and battery cable stripping
- 🔌 Power distribution and industrial cable processing
- 🛠️ High-volume wire harness manufacturing
Learn more about wire stripping technologies and
industrial wire harness applications.
📩 Request Quotation or Technical Sheet
Your trusted solution for large cross-section cable stripping.
