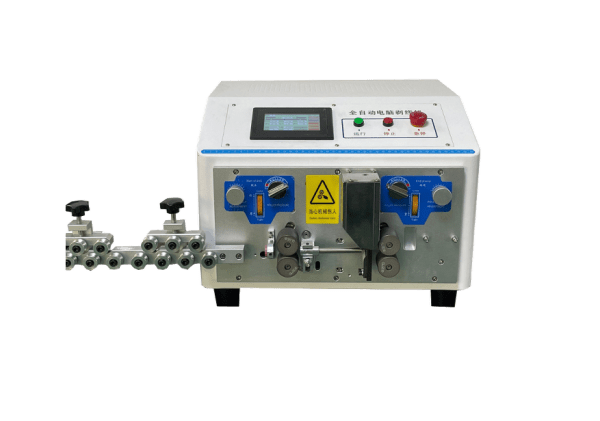

Automatic Large cross-section wire stripping machine(KK-502)

Automatic Large cross-section wire stripping machine(KK-502)

Item Specifications
Product Introduction Automatic Large Cross-Section Wire Stripping Machine (KK-502)
Model Number KK-502
Overall Dimensions 470mm(L) × 430mm(W) × 380mm(H)
Weight 38 kg
Display Type 4.3-inch Touchscreen
Power Input AC 175–250V, ≤50/60Hz
Rated Power 120–220W
Cutting Length Range 0.1mm–99,999.9mm
Stripping Length Capacity Front: 0.1–30mm
Rear: 0.1–30mm
Conductor Cutting Capacity 0.1–16 mm² per wire (dual-wire, AWG32#–14#)
Cutting Tolerance ≤ 0.002 × L mm (L = cutting length)
Mid-Span Stripping 13 Locations
Conduit Diameter 1.5–9mm
Blade Material Tungsten Steel / Imported High-Speed Steel
Drive Mechanism 4-Wheel Synchronized Drive
Wire Stripping Capacity per hour 3,000–5,000 Strips/Hour (dual-wire capable)
Wire Pressure Control Yes
Pulse Equivalent ≤0.05mm Error per 1 Meter
Total Counter Capacity 999,999
Blade Motor Precision 0.03mm/Step
Feed Motor Precision Silent Hybrid Stepper Motor (0.1mm/Step)
Optional Features Automatic Wire Break Detection & Stop, Auto Wire Feeding/Ejection, Programmable Timer Start
Category:

What It Does:

The KK-502 dominates thick dual wires (0.1–16mm², AWG32#–14#) — stripping front/rear ends (30mm max), slicing 0.1mm–99m lengths, and carving 13 mid-span strips per wire.
With 4-wheel sync drive and silent stepper motors (0.1mm/step feeding, 0.03mm/step blades), it holds cuts to ≤0.002×L mm tolerance (≤0.05mm error per meter). Cranking out 3,000–5,000 strips/hour (tackles dual wires too), it’s built for heavy-duty harness shops, industrial wiring, or anyone stripping thick cables without sweat.
