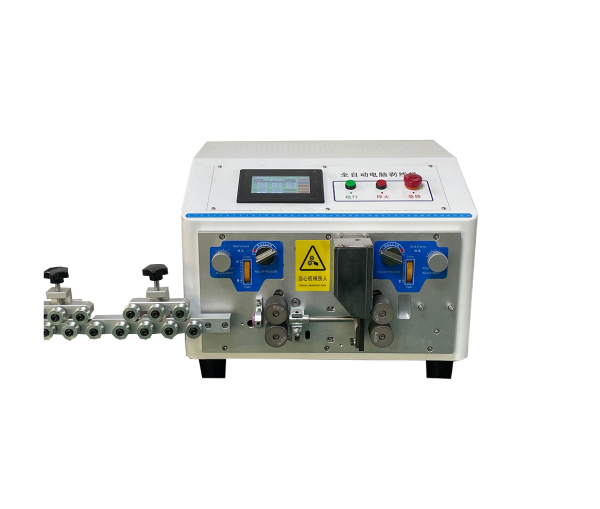

Automatic Large Cross-Section Wire Stripping Machine – KK-502
The KK-502 dominates thick dual wires (0.1–16mm², AWG32#–14#) — stripping front/rear ends (30mm max), slicing 0.1mm–99m lengths, and carving 13 mid-span strips per wire.
With 4-wheel sync drive and silent stepper motors (0.1mm/step feeding, 0.03mm/step blades), it holds cuts to ≤0.002×L mm tolerance (≤0.05mm error per meter).
Cranking out 3,000–5,000 strips/hour (tackles dual wires too), it’s built for heavy-duty harness shops, industrial wiring, or anyone stripping thick cables without sweat.
Specifications
| Item | Specifications |
|---|---|
| Product Name | Automatic Large Cross-Section Wire Stripping Machine (KK-502) |
| Model Number | KK-502 |
| Overall Dimensions | 470mm(L) × 430mm(W) × 380mm(H) |
| Weight | 38 kg |
| Display Type | 4.3-inch Touchscreen |
| Power Input | AC 175–250V, ≤50/60Hz |
| Rated Power | 120–220W |
| Cutting Length Range | 0.1mm–99,999.9mm |
| Stripping Length Capacity | Front: 0.1–30mm / Rear: 0.1–30mm |
| Conductor Cutting Capacity | 0.1–16 mm² per wire (AWG32#–14#) |
| Cutting Tolerance | ≤ 0.002 × L mm |
| Mid-Span Stripping | 13 Locations |
| Conduit Diameter | 1.5–9mm |
| Blade Material | Tungsten Steel / Imported High-Speed Steel |
| Drive Mechanism | 4-Wheel Synchronized Drive |
| Stripping Capacity | 3,000–5,000 Strips/Hour |
| Wire Pressure Control | Yes |
| Pulse Equivalent | ≤0.05mm Error per Meter |
| Blade Motor Precision | 0.03mm/Step |
| Feed Motor | Silent Hybrid Stepper Motor (0.1mm/Step) |
| Optional Features | Auto Wire Break Detection, Auto Feeding/Ejection, Programmable Timer |
