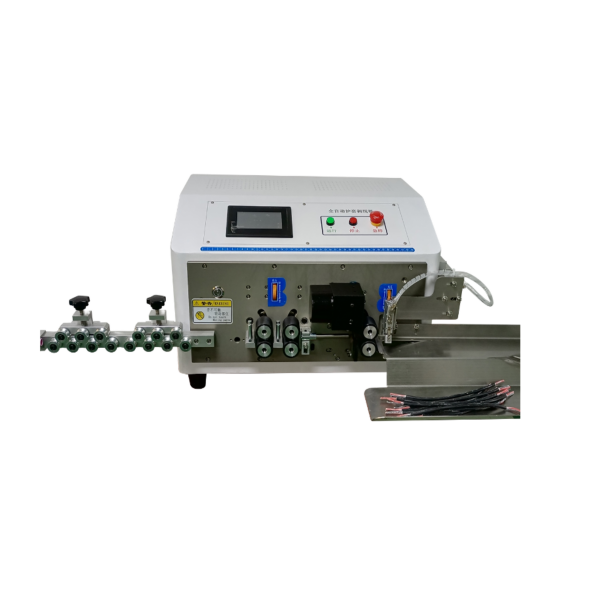

KK-504 Computerized Sheathed Wire Stripping Machine – Advanced Multi-Core Cable Processing
If you’re looking for a high-efficiency solution to process multi-core sheathed wires (such as 3×2.5mm² cables), the KK-504 Computerized Sheathed Wire Stripping Machine is engineered to deliver precision, power, and reliability. Designed for cable harness manufacturers, electrical assembly lines, and industrial automation setups, this machine combines a silent high-precision stepper motor with 6-wheel synchronized drive to ensure stable wire feeding, accurate cutting, and flexible mid-span stripping.
Visit our product catalog to compare it with other models like the KK-8030 for single-core precision wire stripping.
What This Sheathed Wire Stripping Machine Delivers
The KK-504 supports cable sizes from 1mm² to 10mm² and offers up to 15 mid-span stripping points—ideal for custom harness applications. It handles front-end stripping up to 150mm and rear ends up to 80mm, achieving ultra-precise cuts with a tolerance of ≤0.002×L mm. The built-in blue LCD interface and automated wire feeding and ejecting systems make it especially user-friendly and efficient.
Looking for tips on choosing the right model? Check our wire stripping machine selection guide.
| Item | Specifications |
|---|---|
| Product Type | Computerized Sheathed Wire Stripping Machine |
| Model | KK-504 |
| Dimensions | 530mm(L) × 430mm(W) × 330mm(H) |
| Weight | 45 kg |
| Display | Blue Screen LCD |
| Voltage | AC 175–250V, 50/60Hz |
| Power | 200W |
| Cutting Range | 0.1mm–99,999.9mm |
| Stripping Length | Front: 0.1–150mm; Rear: 0.1–80mm |
| Wire Capacity | 1 mm² – 10 mm² (3×2.5 mm²) |
| Tolerance | ≤0.002×L mm |
| Mid-Span Points | 15 Positions |
| Conduit Diameter | 6–10mm |
| Blade Type | Tungsten / High-Speed Steel |
| Drive Mechanism | 6-Wheel Synchronized Drive |
| Productivity | 2,000–4,000 Strips/Hour |
| Wire Pressure Control | Yes |
| Deviation | Zero Deviation Within 5m |
| Total Counter | 999,999 |
| Batch Counter | 99,999 |
| Motor | Silent Stepper Motor (0.1mm/Step) |
| Automation | Auto Feeding / Ejecting, Timer Start |
