KK-504 Automatic wire stripping machine for sheathed cables

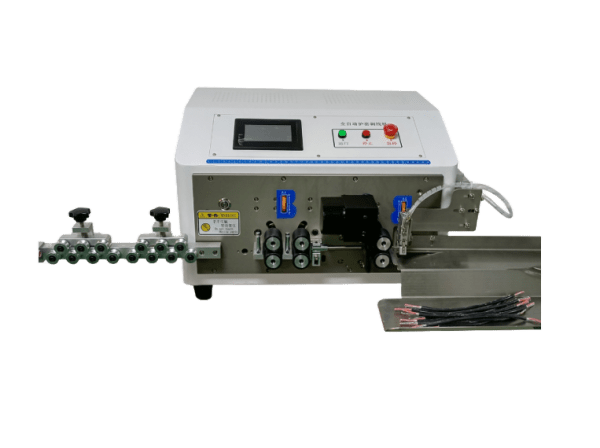

Automatic Sheathed Wire Stripping Machine(KK-504)

Item Specifications
Product Introduction Computerized Sheathed Wire Stripping Machine
Model Number KK-504
Overall Dimensions 530mm(L) × 430mm(W) × 330mm(H)
Weight 45 kg
Display Type Blue Screen LCD Display
Power Input AC 175–250V, 50/60Hz
Rated Power 200W
Cutting Length Range 0.1mm–99,999.9mm
Stripping Length Capacity Front: 0.1–150mm
Rear: 0.1–80mm
Conductor Cutting Capacity 1 mm² – 10 mm² (3 cores × 2.5 mm²)
Cutting Tolerance ≤0.002×L mm (L = cutting length)
Mid-Span Stripping 15 Locations
Conduit Diameter 6–10mm
Blade Material Tungsten Steel / Imported High-Speed Steel
Drive Mechanism 6-Wheel Synchronized Drive
Wire Stripping Capacity per hour 2,000–4,000 Strips/Hour
Wire Pressure Control Yes
Pulse Equivalent Zero Deviation Within 5 Meters
Total Counter Capacity 999,999
Batch Counter Capacity 99,999
Blade Motor Precision Silent Hybrid Stepper Motor (0.1mm/Step)
Automation Features Auto Wire Feeding/Ejection, Programmable Timer Start
Category:

What It Does:

The KK-504 specializes in multi-core sheathed wires (1–10mm², including 3×2.5mm² cables), stripping front ends up to 150mm and rear ends to 80mm. Its 6-wheel drive ensures stable feeding for tough sheaths, while 15 mid-span stripping points tackle complex harness layouts.


With a blue LCD interface and silent stepper motors (0.1mm/step precision), it maintains zero deviation in 5 meters of wire, cutting within 0.002×L mm tolerance. Cranking out 2,000–4,000 strips/hour, it’s built for electrical contractors, appliance manufacturers, or anyone stripping shielded cables—no manual fuss, just reliable, high-precision performance.
