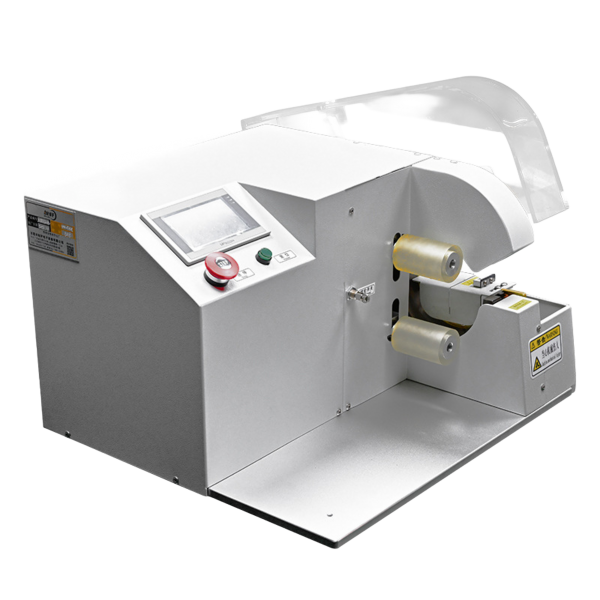

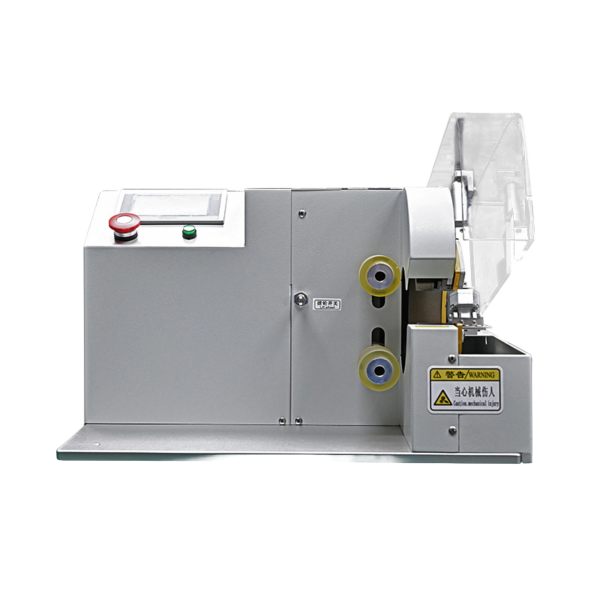

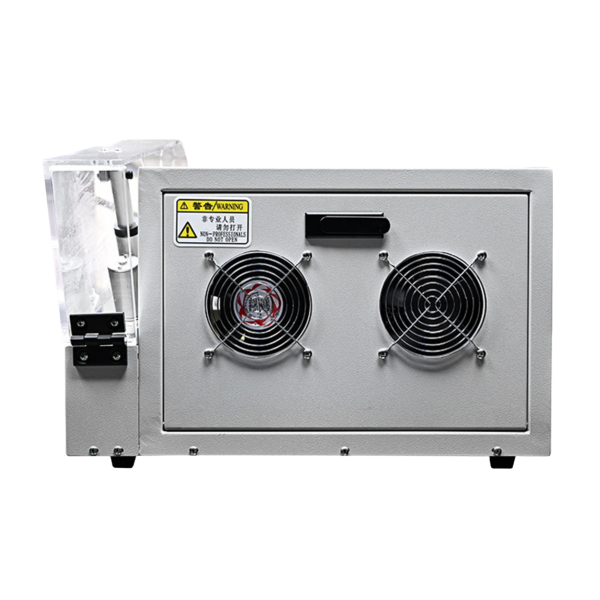

Intelligent Tape Wrapping Machine – Model KK-T01
The Smart Tape Machine KK-T01 is engineered for automatic tape wrapping of automotive wire harnesses. It ensures uniform wrapping, improves wire insulation and durability, and significantly enhances production efficiency. Widely used in manufacturing and processing of automotive cables, electronic wiring, and special-purpose industrial harnesses.
🔧 Tape Wrapping Machine Specifications
| Model | KK-T01 |
| Alternative Name | Smart Tape Machine |
| Machine Dimensions | 560 × 500 × 350 mm |
| Power Supply | 220V / 110V (specify when ordering) |
| Power Consumption | 100 W |
| Main Spindle Speed | 4500 rpm |
| Applicable Wire Diameter | 3 – 25 mm |
| Applicable Tapes | High-temperature, mica, ceramic, PVC, vinyl, cloth, flannel tape |
✅ Key Features of KK-T01 Tape Wrapping Machine
- 🔄 Automatic uniform tape wrapping for consistent results
- 🛡️ Enhanced wire insulation and durability
- ⚡ High-efficiency production (up to 3x faster than manual wrapping)
- 🎚️ Precision tension control for different tape types
- 🧰 Multi-tape compatibility for various applications
- 📱 User-friendly digital interface with preset programs
🔍 Applications of the Tape Wrapping Machine
- 🚗 Automotive wire harnesses and cable assemblies
- 🔌 Electronic wiring and component insulation
- 🏭 Special-purpose industrial harnesses
- 🔧 Custom cable manufacturing
- ⚡ High-voltage cable production
🏭 Use Case Example
In automotive component manufacturing, the Intelligent Tape Wrapping Machine automates the insulation process for engine wiring harnesses. This ensures consistent tape tension and overlap, improves heat resistance up to 200°C, and reduces manual labor by 70% compared to traditional methods while maintaining precise 50% overlap ratio.
💬 Frequently Asked Questions
Can it handle different tape widths?
Yes, the machine supports tape widths from 5mm to 50mm with quick-change adapters.
Is operator training required?
Basic operation training is provided with purchase. The intuitive touchscreen interface allows operators to master basic functions within 1 hour.
What maintenance does it require?
Daily cleaning of tape residues and monthly lubrication. We recommend professional servicing every 1,000 operating hours.
Can it wrap irregularly shaped components?
Yes, with optional fixtures, it can wrap connectors, terminals, and irregular cable sections.
Learn more about wire harness manufacturing or ISO 6722 wiring standards.
