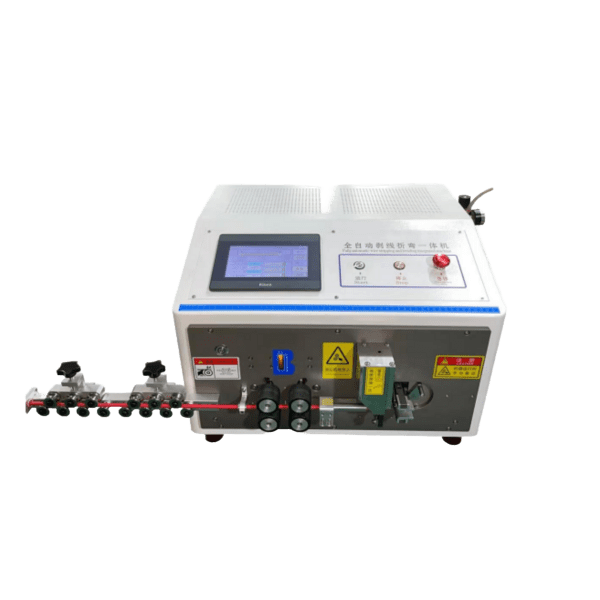

Automatic BV Wire Bending and Stripping Machine – Up to 16mm²

The BV wire bending and stripping machine is an intelligent  solution for processing wires up to 16mm². This all-in-one equipment combines high-speed cutting, precision stripping, and multi-angle bending. With 13 programmable bending stations, it handles clockwise/counterclockwise bending, U-shapes, and fixed-angle twists (30°/45°/60°/90°) with ease.

Key Features

• 🎮 Touchscreen Interface: Simple operation with job memory – no coding needed.
• 🔁 13 Bending Stations: Adjustable for tight spaces and complex U-bends (≥30mm).
• 📏 Precision Cutting: Tolerance of ±0.002×L mm ensures excellent accuracy.
• ⚙️ Robust Build: Imported HSS blades and four-wheel drive system for durability.
• ⚡ Fast Throughput: Handles 400–1000 wires per hour depending on job setup.

Technical Specifications

Model	For BV wires up to 16mm²
Dimensions	530mm × 420mm × 370mm
Weight	45 kg
Display	Touchscreen Control Panel
Power Supply	AC 175V–250V, 50/60Hz
Power Consumption	130W–200W
Cutting Length	0.1mm–99,999.9mm
Stripping Length	0.1–100mm (Front End)
Bending Modes	Clockwise / Counterclockwise, U-shape (≥30mm)
Min. Last Bend	≥30mm
Wire Range	0.1–16mm²
Cutting Tolerance	±0.002 × L mm
Guide Tube Ø	1.5mm–10mm
Blade Material	Imported HSS (High-Speed Steel)
Drive System	Four-Wheel Mechanism
Throughput	400–1000 pcs/hour



Application Scenarios

This machine is widely used in automotive wiring systems, electrical panel assembly, and industrial automation setups. Whether you’re forming U-shaped terminal leads or pre-cutting control wires, it ensures repeatable precision and high productivity.
