| Item | Specifications |
|---|---|

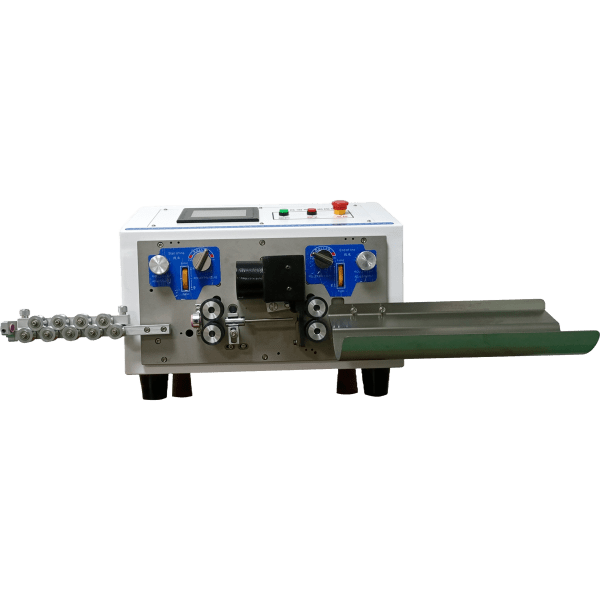

| Product Introduction | Computerized Wire Stripping Machine (Single-Wire Type) |
| Model Number | KK-500 |
| Overall Dimensions | 420mm(L) × 345mm(W) × 297mm(H) |
| Weight | 28 kg |
| Display Type | 4.3-inch Touchscreen |
| Power Input | AC 175–250V, ≤50/60Hz |
| Rated Power | 120–220W |
| Cutting Length Range | 0.1mm–99,999.9mm |
| Stripping Length Capacity | Front: 0.1–50mm Rear: 0.1–30mm |
| Conductor Cutting Capacity | 0.1–6.0 mm² |
| Cutting Tolerance | ≤ 0.002 × L mm (L = cutting length) |
| Mid-Span Stripping | 13 Locations |
| Conduit Diameter | 1.5–9mm |
| Blade Material | Tungsten Steel / Imported High-Speed Steel |
| Drive Mechanism | 4-Wheel Synchronized Drive |
| Wire Stripping Capacity per hour | 3,000–5,000 Strips/Hour |
| Wire Pressure Control | Yes |
| Pulse Equivalent | ≤0.05mm Error per 1 Meter |
| Total Counter Capacity | 999,999 |
| Batch Counter Capacity | 99,999 |
| Blade Motor Precision | 0.03mm/Step |
| Feed Motor Precision | Silent Hybrid Stepper Motor (0.1mm/Step) |
| Optional Features | Automatic Wire Break Detection & Stop, Auto Wire Feeding/Ejection, Programmable Timer Start |
