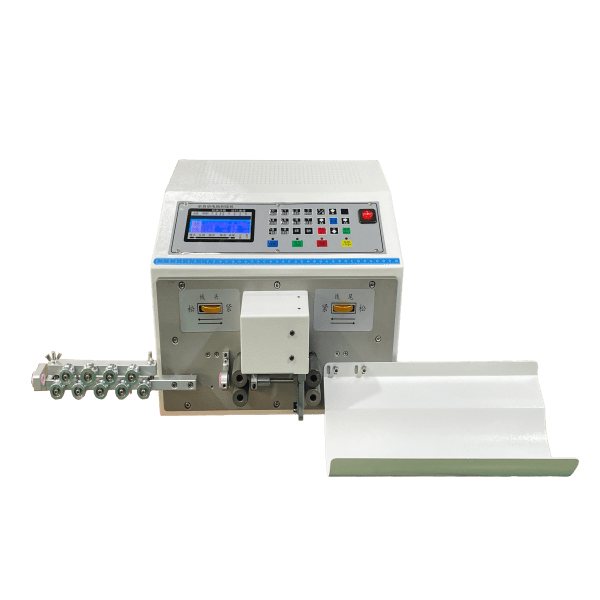

Automatic Wire Stripping Machine KK-500M (Single-Wire)

Automatic Wire Stripping Machine KK-500M (Single-Wire)

Item Specifications
Model Number KK-500M
Overall Dimensions 420mm(L) × 345mm(W) × 297mm(H)
Weight 20 kg
Display Type Button Operation Interface
Power Input AC 175–250V, 50/60Hz
Rated Power 120–220W
Cutting Length Range 0.1mm–99,999.9mm
Stripping Length Capacity Front: 0.1–20mm
Rear: 0.1–20mm
Conductor Cutting Capacity 0.1–4.0 mm² (AWG32#–18#), dual-core
Cutting Tolerance ≤ 0.002 × L mm (L = cutting length)
Mid-Span Stripping Up to 13 locations
Conduit Diameter 1.5–9mm
Blade Material Tungsten Steel / Imported High-Speed Steel
Drive Mechanism 4-Wheel Synchronized Drive
Wire Stripping Capacity 2,000–4,000 strips/hour
Wire Pressure Control Programmable
Pulse Equivalent ≤0.05mm error per 1 meter
Total Counter Capacity 999,999 strips
Batch Counter Capacity 99,999 strips/batch
Blade Motor Precision 0.03mm/step
Feed Motor Precision Silent Hybrid Stepper Motor (0.1mm/step)
Category:
What It Does:
Strips sheathed computer cables (1–6mm²) like a pro—handles front/rear stripping, mid-span cuts at up to 13 spots, and auto-feeds wires nonstop.
Dead-on accuracy: 0.1mm/step silent stepper motor, zero deviation in 5m runs. Blades? Tungsten carbide or imported steel—tough as nails.
Cranks out 2,000–4,000 strips/hour. Plus auto wire feed/ejection and scheduled start—set it and forget it.
Easy 4.5” touchscreen setup, 4-wheel grip for stable feeding. Built for electronics labs, wiring shops, or anyone over manual stripping chaos.
