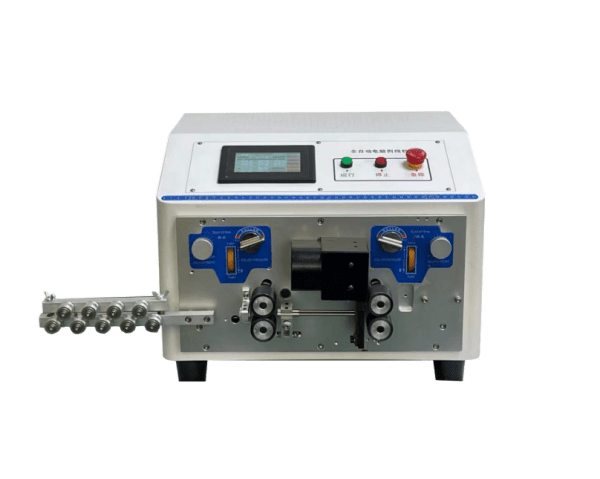

Automatic Wire Stripping Machine KK-501 (Dual-Wire Processing)

Automatic Wire Stripping Machine KK-501 (Dual-Wire Processing)

Item Specifications
Product Introduction Computer Wire Stripping Machine (Dual-Wire Type)
Model Number KK-501
Overall Dimensions 420mm(L) × 345mm(W) × 297mm(H)
Weight 28 kg
Display Type 4.3-inch Touchscreen
Power Input AC 175–250V, ≤50/60Hz
Rated Power 120–220W
Cutting Length Range 0.1mm–99,999.9mm
Stripping Length Capacity Front: 0.1–50mm
Rear: 0.1–30mm
Conductor Cutting Capacity 0.1–2.5 mm² per wire (dual-wire, AWG32#–18#)
Cutting Tolerance ≤ 0.002 × L mm (L = cutting length)
Mid-Span Stripping Up to 13 Locations
Conduit Diameter 1.5–9mm
Blade Material Tungsten Steel / Imported High-Speed Steel
Drive Mechanism 4-Wheel Synchronized Drive
Wire Stripping Capacity per hour 3,000–5,000 Strips/Hour (dual-wire simultaneous)
Wire Pressure Control Yes
Pulse Equivalent ≤0.05mm Error per 1 Meter
Total Counter Capacity 999,999
Batch Counter Capacity 99,999
Blade Motor Precision 0.03mm/Step
Feed Motor Precision Silent Hybrid Stepper Motor (0.1mm/Step)
Optional Features Automatic Wire Break Detection & Stop, Auto Wire Feeding/Ejection, Programmable Timer Start
Category:

What It Does :

The KK-501 is a dual-wire workhorse—stripping two cables at the same time (0.1–2.5mm² each, AWG32#–18#). It nails front/rear stripping (50mm/30mm), 13 mid-span cuts, and 0.03mm blade precision, all held steady by 4-wheel drive.
Cranking out 3,000–5,000 dual-wire strips per hour (that’s 6,000+ wires!), it keeps errors under 0.05mm per meter. Want auto wire break detection or timed starts? Just add ’em. Built for harness shops, automation labs, or anyone who needs double the output, zero extra hassle.
