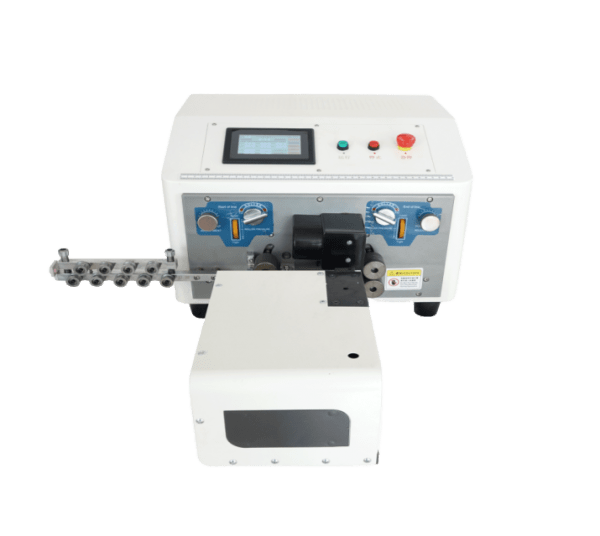

Automatic Wire Stripping & Twisting Machine (Flat-Sheath, KK-503N)

Automatic Wire Stripping & Twisting Machine (Flat-Sheath, KK-503N)

Item Specifications
Product Introduction Flat-Sheath Wire Stripping & Twisting Machine
Model Number KK-503N
Overall Dimensions 480mm(L) × 345mm(W) × 297mm(H)
Weight 48 kg
Display Type 4.3-inch Touchscreen
Power Input AC 175–250V, ≤50/60Hz
Rated Power 120–220W
Cutting Length Range 0.1mm–99999.9mm
Stripping Length Capacity Front: 0.1–100mm; Rear: 0.1–80mm
Conductor Cutting Capacity Max. 6mm² (flat wires only)
Cutting Tolerance ≤ 0.002 × L mm (L = cutting length)
Twisting Method Motor-Driven Strand Twisting
Mid-Span Stripping 13 Locations
Conduit Diameter 1.5–9mm
Blade Material Tungsten Steel / Imported High-Speed Steel
Drive Mechanism 4-Wheel Synchronized Drive
Wire Stripping Capacity per hour 1,000–3,000 Strips/Hour
Wire Pressure Control Yes
Pulse Equivalent ≤0.05mm Error per 1 Meter
Blade Motor Precision 0.03mm/Step
Feed Motor Precision Silent Hybrid Stepper Motor (0.1mm/Step)
Optional Features Automatic Wire Break Detection & Stop, Auto Wire Feeding/Ejection, Programmable Timer Start
Categories: ,

What It Does:

The KK-503N is a flat-sheath specialist—stripping extra-long ends (100mm front, 80mm rear), cutting 13 mid-span points, and twisting strands via motor torque.
Built for 6mm² flat wires, it uses 4-wheel sync drive and silent steppers (0.1mm/step feeding, 0.03mm/step blades) to keep errors under 0.05mm per meter. Cranking out 1,000–3,000 strips/hour, it’s perfect for automotive flat harnesses or industrial flat cables—add auto stop, timed starts, or hands-free feeding to skip manual twisting. No fluff, just flat-wire mastery.
