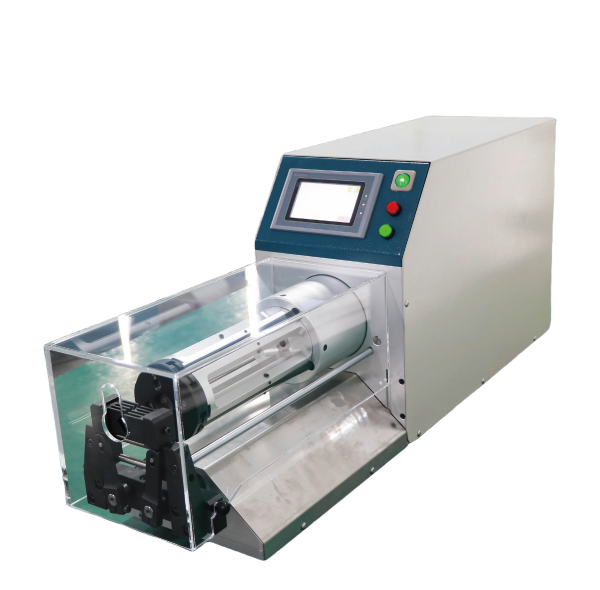

KK-2320 Coaxial Cable Stripping Machine – Large Diameter & Multi-Layer
The KK-2320 Coaxial Cable Stripping Machine is engineered for high-precision stripping of various flexible and semi-flexible coaxial cables, EV charging cables, medical wires, and specialty cables used in communications, medical, and automotive industries.
It delivers neat, burr-free stripping edges without damaging conductors, supports up to 9 layers of stripping, and can store 99 sets of processing data.
Equipped with a rotary cutter head and four rotary blades, its compact and durable structure ensures exceptional stripping stability and extended tool life.
📐 Machine Specifications
| Model | KK-2320 |
| Maximum Stripping Length | 0–200 mm |
| Cutting Diameter Range | 2–23 mm |
| Stripping Length Setting Unit | 0.01 mm |
| Cutting Depth Setting Unit | 0.01 mm |
| Maximum Stripping Layers | 9 layers |
| Number of Blades | 4 pcs |
| Power Supply | AC 220V / 110V, 50/60 Hz |
| Power Consumption | 600 W |
| Dimensions | 930 × 235 × 400 mm |
| Weight | 56 kg |
| Production Efficiency | 300–800 pcs/h (depending on wire type) |
🔧 Key Features
- ⚙️ Supports flexible and semi-flexible coaxial, EV charging, and medical cables
- 🌀 Rotary cutter head with four rotary blades for maximum stability
- 🎯 Precision stripping depth control to 0.01 mm
- 🖥️ Easy-to-use human–machine interface with bilingual display
- 📦 Stores up to 99 sets of processing parameters
🏭 Typical Applications
- 📡 Communication cable preparation
- 🚗 EV charging cable processing
- 🏥 Medical-grade wire stripping
- 🛠️ Industrial coaxial cable assembly
Learn more about coaxial cable technology and
precision wire stripping methods.
📩 Request Quotation or send samples
Speak with our automation experts to customize your setup.
