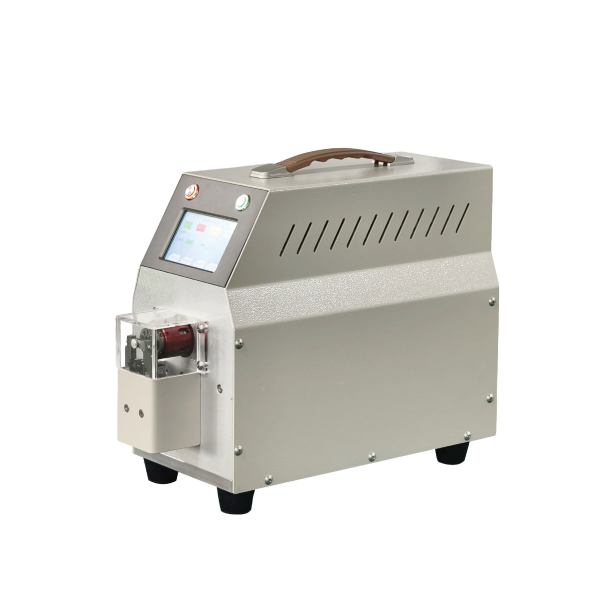

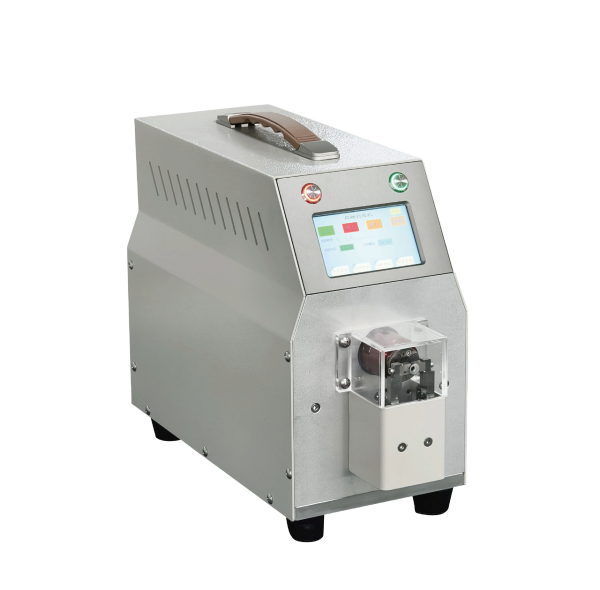

KK-1208 Coaxial Cable Stripping Machine – Ultra-Fine & Multi-Layer
The KK-1208 Coaxial Cable Stripping Machine is designed for precision stripping of extremely fine flexible coaxial cables used in communications and medical industries.
It supports up to 9 layers of stripping, stores 99 processing data sets, and features an automatic waste insulation suction system.
Equipped with a rotary cutter head, three rotary blades and three wire-protecting blades, it ensures neat stripping edges without conductor damage while extending blade life.
Compact in size, it can be integrated with other automatic machines for production lines.
📐 Machine Specifications
| Model | KK-1208 |
| Applicable Wires | Coaxial cables, ultra-fine medical wires |
| Maximum Stripping Length | 0–20 mm |
| Stripping Length Setting Unit | 0.01 mm |
| Cutting Diameter Range | 0.4–1.6 mm |
| Cutting Depth Setting Unit | 0.01 mm |
| Maximum Stripping Layers | 9 layers |
| Display Method | Touch screen |
| Display Interface | Chinese/English LCD 95 × 50 mm |
| Power Supply | AC 220V / 110V, 50/60 Hz |
| Power Consumption | 300 W |
| Number of Blades | 3 pcs |
| Number of Wire Protectors | 3 pcs |
| Dimensions | 310 × 160 × 280 mm |
| Weight | 18 kg |
| Drive Method | Ball screw motor drive |
| Blade Material | Imported tungsten steel |
| Waste Insulation Collection | Automatic suction |
| Operating Environment | -5°C to 45°C, dry, vibration-free |
| Memory Capacity | 99 sets |
| Production Efficiency | 750–1150 pcs/h (depending on wire type) |
🔧 Key Features
- ⚙️ Multi-layer stripping capability (up to 9 layers)
- 🌀 Rotary cutter head with 3 rotary blades and 3 wire-protecting blades
- 🎯 Precision 0.01 mm stripping depth control
- 🖥️ Touchscreen interface with bilingual display
- 🪵 Automatic waste insulation suction and collection
🏭 Typical Applications
- 💡 Communication cable stripping for signal integrity
- 🏥 Medical-grade ultra-fine wire processing
- 🛠️ Precision coaxial cable preparation
- 🔬 Laboratory and small-batch automated production
