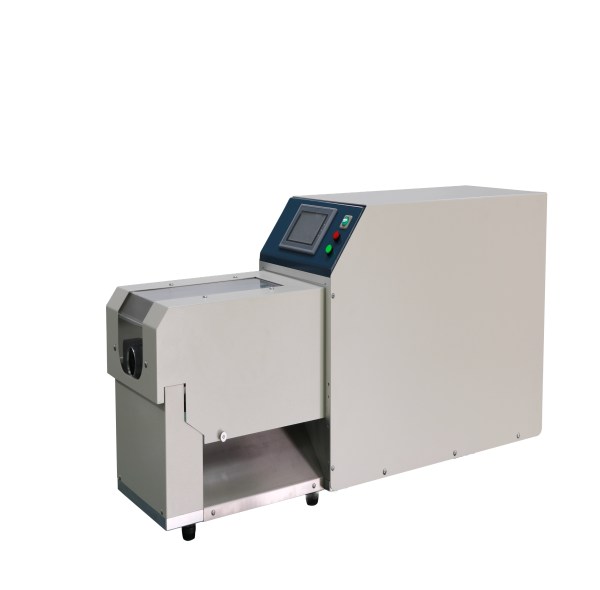

KK-3520 Semi-Automatic Coaxial Wire Stripping Machine – High-Power & Large Diameter
The KK-3520 Semi-Automatic Coaxial Wire Stripping Machine is purpose-built for new energy charging gun cables and other applications requiring high precision on thick, multi-layer cables.
It ensures neat stripping ends without damaging the inner layer, delivering a flawless outer appearance.
With support for up to 9 layers of stripping and a powerful 2000W drive, it is ideal for large-diameter cable processing in automotive, energy, and industrial sectors.
📐 Machine Specifications
| Model | KK-3520 |
| Maximum Stripping Length | 0–150 mm / 0–200 mm |
| Cutting Diameter Range | 3–30 mm |
| Stripping Length Setting Unit | 0.01 mm |
| Cutting Depth Setting Unit | 0.01 mm |
| Maximum Stripping Layers | 9 layers |
| Number of Blades | 4 pieces |
| Power Supply | AC 220V / 110V, 50/60 Hz |
| Power Consumption | Approx. 2000 W |
| Dimensions | 1000 × 285 × 490 mm / 1180 × 335 × 500 mm |
| Weight | 108 kg / 145 kg |
🔧 Key Features
- ⚙️ Designed for high-thickness cable stripping such as EV charging gun cables
- 🌀 Four-blade rotary cutting head for stability and precision
- 🎯 0.01 mm stripping and cutting depth resolution
- 🖥️ Simple human–machine interface for easy operation
- 💾 Stores multiple stripping configurations for fast switching
🏭 Typical Applications
- 🔌 EV charging cable preparation
- 📡 High-frequency coaxial cable stripping
- 🏥 Medical-grade cable processing
- 🛠️ Industrial thick cable assembly
Learn more about coaxial cable design and
precision stripping techniques.
📩 Request Quotation or send samples
Talk to our technical team for customized stripping solutions.
