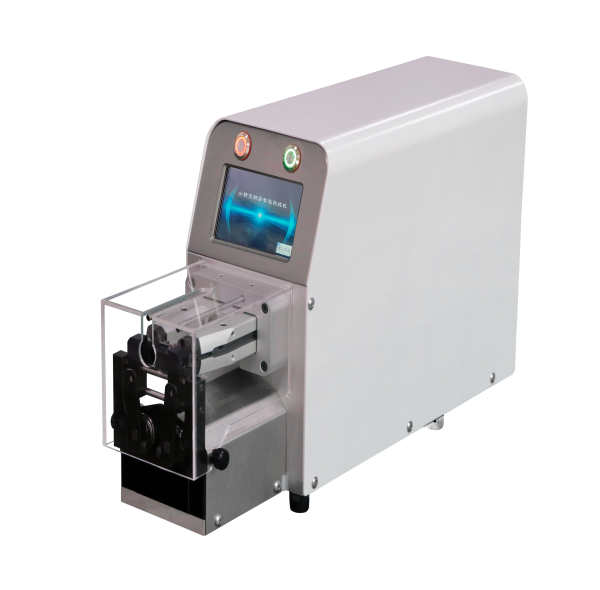

KK-B745 Precision Coaxial Wire Stripping Machine – Compact & Accurate
The KK-B745 is a high-precision wire stripping machine designed for coaxial cables, signal lines, and fine electronic wires with diameters from 0.5–7 mm.
It supports up to 4 stripping layers with 0.01 mm resolution for both length and depth, ensuring clean and conductor-safe stripping.
With a compact footprint and a throughput of up to 1,150 pcs/hour, it is perfect for electronics manufacturing, communications, and laboratory applications.
📐 Machine Specifications
| Model | KK-B745 |
| Max. Stripping Length | 0 – 45 mm |
| Stripping Length Resolution | 0.01 mm |
| Applicable Wire Diameter | 0.5 – 7 mm |
| Cutting Depth Resolution | 0.01 mm |
| Max. Stripping Layers | Up to 4 layers |
| Power Supply | AC 220V / 110V, 50/60 Hz |
| Power Consumption | 300 W |
| Number of Blades | 2 blades |
| Machine Dimensions | 495 × 138 × 260 mm |
| Machine Weight | 13.8 kg |
| Blade Material | Imported tungsten steel |
| Memory Capacity | Up to 99 sets of processing parameters |
| Production Capacity | 750 – 1,150 pcs/hour (depending on wire specifications) |
🔧 Key Features
- ⚙️ Precision stripping for coaxial and signal cables
- 🌀 Adjustable up to 4 stripping layers with micron-level depth control
- 🎯 Compact design ideal for small-scale production and lab use
- 🖥️ Stores up to 99 sets of processing parameters
- 🪓 Durable imported tungsten steel blades
🏭 Typical Applications
- 💡 Coaxial cable stripping for communications equipment
- 🔌 Fine wire preparation for electronics and medical devices
- 🛠️ Small-scale production and R&D testing
Learn more about wire stripping techniques and
coaxial cable applications.
📩 Request Quotation or send samples
Your compact solution for high-precision coaxial cable stripping.
