KK-505 Fully automatic wire stripping machine for sheathed wires

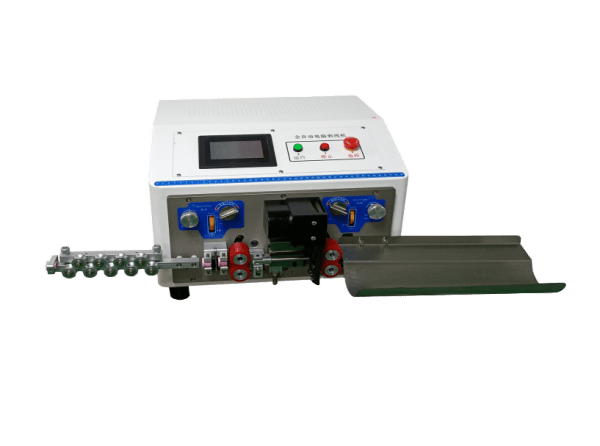

Fully Automatic Wire Stripping Machine-KK-505 (Sheathed-Wire)

Item Specifications
Product Introduction Fully Automatic Wire Stripping Machine (Inner/Outer Sheath Stripping)
Model Number KK-505
Overall Dimensions 420mm(L) × 345mm(W) × 297mm(H)
Weight 35 kg
Display Type 4.3-inch Touchscreen
Power Input AC 175–250V, ≤50/60Hz
Rated Power 120–220W
Cutting Length Range 0.1mm–99,999.9mm
Stripping Length Capacity Front: 0.1–150mm
Rear: 0.1–80mm
Conductor Cutting Capacity Up to 8 cores, OD≤8.0mm sheathed wires
Cutting Tolerance ≤0.002×L mm (L = cutting length)
Mid-Span Stripping 13 Locations
Conduit Diameter 1.5–9mm
Blade Material Tungsten Steel / Imported High-Speed Steel
Drive Mechanism 4-Wheel Synchronized Drive
Wire Stripping Capacity per hour 700–1,200 Strips/Hour
Wire Pressure Control Yes
Pulse Equivalent ≤0.05mm Error per 1 Meter
Total Counter Capacity 999,999
Batch Counter Capacity 99,999
Blade Motor Precision 0.03mm/Step
Feed Motor Precision Silent Hybrid Stepper Motor (0.1mm/Step)
Optional Features Automatic Wire Break Detection & Stop, Auto Wire Feeding/Ejection, Programmable Timer Start
Category:

What It Does:

The KK-505 is your go-to for dual-layer sheathed wires (up to 8 cores, OD8.0mm). It strips inner/outer sheaths with precision—150mm front stripping, 80mm rear, and 13 mid-span cuts for complex harnesses.
Powered by a 4-wheel drive and silent steppers (0.1mm/step feeding, 0.03mm blade precision), it keeps errors under 0.05mm per meter. The 4.3″ touchscreen makes setup a breeze, while tungsten steel blades plow through tough insulation.
Cranking out 700–1,200 strips/hour, it’s built for electronics manufacturers or 线束 shops tackling multi-core cables. Add auto wire break detection or timed starts to eliminate manual checks—just load, set, and let it rip. No frills, all muscle for sheathed wire stripping.
