Automatic Waterproof Terminal Crimping Machine | KKD6

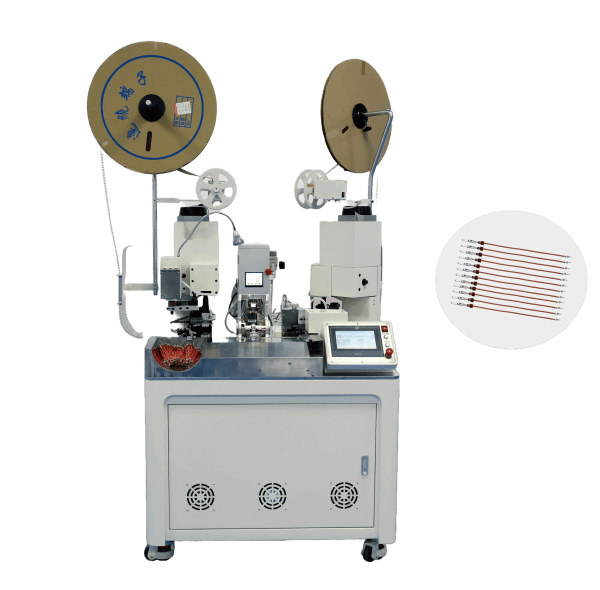

The KKD6 Automatic Waterproof Terminal Crimping Machine integrates wire cutting, stripping, double-end terminal crimping, and waterproof grommet insertion in a single cycle. Ideal for automotive and sealed cable applications, this machine ensures high-speed and precision wire processing for AWG#28–#16 wires.
🔧 Technical Specifications
| Model | KKD6 |
| Wire Range | AWG#28–#16 |
| Cutting Length | 50mm – 9,999mm |
| Cutting Accuracy | ≤1mm + 0.2% |
| Stripping Length | 1.5–10mm |
| Processing Speed | Up to 2,800 pcs/hour (≤100mm wires) |
| Crimping | Double-end crimping + waterproof grommet on one side |
| Applications | Automotive harness, waterproof cable assemblies, industrial wiring |
✅ Key Features
- Performs wire cutting, stripping, double-end terminal crimping, and grommet insertion automatically
- Designed for waterproof and sealed cable applications
- High-speed operation with accuracy and repeatability
- Supports AWG#28–#16 wires
- Touch screen interface for quick setup and adjustment
🔍 Applications
- 🚗 Automotive waterproof harnesses
- 🔌 Industrial sealed cable assemblies
- 🌧️ Electronics requiring grommet-sealed wire ends
💬 FAQ
Can it insert different types of grommets?
Yes, the KKD6 supports multiple grommet sizes and types with optional tooling.
Does it support multi-wire processing?
The standard version is for single-wire. Multi-core options are available on request.
Is remote support available?
Yes, we offer online troubleshooting and global service.
Learn more about crimping technology or refer to ISO 6722 for wire specifications.
