🔧 Technical Specifications

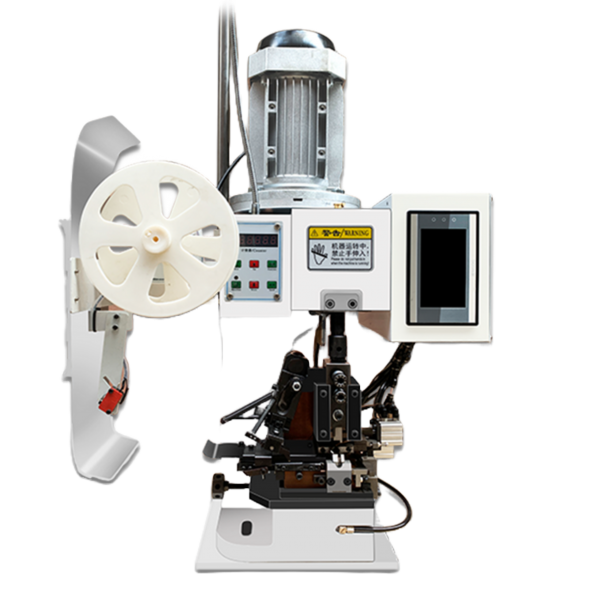

| Model | KK-Horizontal |
|---|---|
| Motor Power | 0.75KW |
| Control Board Power | 1.5KW |
| Crimping Range | ≤ 4mm² |
| Working Voltage | AC220V 50/60Hz (110V customizable) |
| Stroke | 30mm |
| Crimping Force Capacity | 2T |
| Dimensions | 450×390×710mm |
| Weight | 75kg |
| Compatible Dies | High-precision pneumatic dies |
| Optional Add-ons | Pressure monitor |
📌 Key Features
- Horizontal feed structure for improved ergonomics and accuracy
- Stable 2T crimping force for precise terminal connections
- Supports up to 4mm² wire terminal applications
- Optional pressure sensor ensures crimp quality consistency
- Compact design suitable for integration into workbenches and production lines
💡 Application Scenarios
The KK-Horizontal is widely used in industries requiring horizontal wire layout processing, including:
- Automotive wire harness production
- Industrial control panel wiring
- Consumer electronics and appliances
- Custom cable assembly workshops
❓ Frequently Asked Questions
Q1: Can the machine work with U-type or O-type terminals?
A1: Yes, it supports a variety of terminal shapes with appropriate pneumatic dies.
Q2: Is it possible to integrate this into a semi-automatic production line?A2: Absolutely. Its horizontal structure makes it ideal for semi-automated wiring setups.
Q3: What if I need a pressure monitoring feature?
A3: A pressure sensor module can be optionally added to the machine at the time of purchase.
