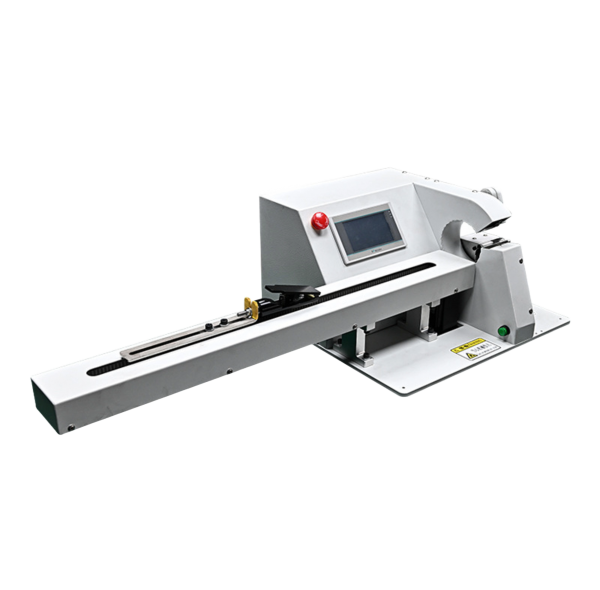

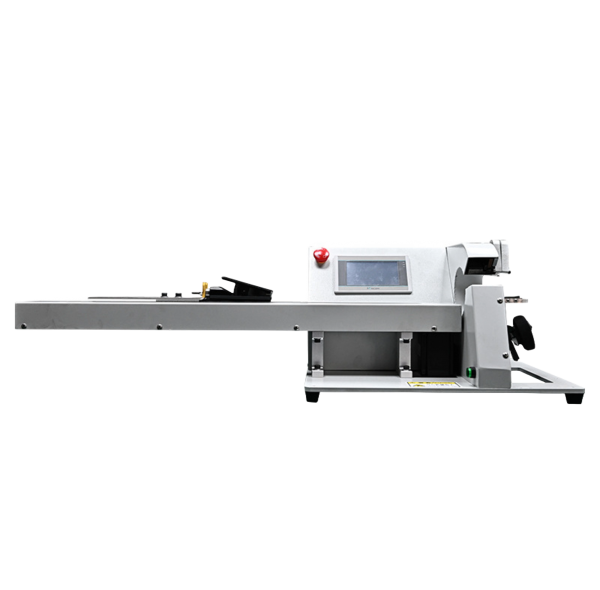

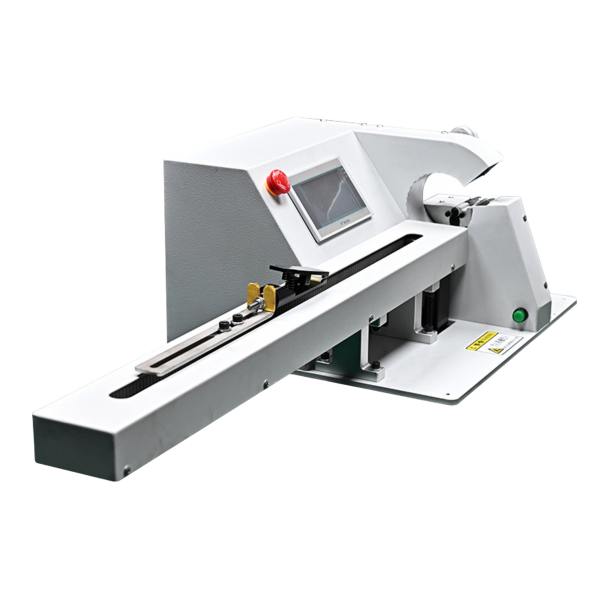

Intelligent Tape Wrapping Machine – Model KK-T04 (500mm Wire Feeder)
The KK-T04 automatic tape wrapping machine for automotive wire harness is engineered for high-speed spiral insulation and bundling tasks. With a built-in 500mm wire feeding arm, dual-directional spindle, and compatibility with multiple tape types, this machine ensures consistent, efficient wrapping in manufacturing and processing of automotive cables, industrial wiring, and specialized harnesses.
🔧 Tape Wrapping Machine Specifications
| Model | KK-T04 |
| Product Name | Tape Wrapping Machine (with 500mm Pull-Feeder Arm) |
| Machine Dimensions | 910 × 380 × 280 mm |
| Power Supply | 220V / 110V (specify when ordering) |
| Spindle Speed | 300–2500 RPM |
| Spindle Direction | Forward & Reverse |
| Applicable Wire Diameter | 3–25 mm (standard), 1–12 mm (optional) |
| Wrapping Method | Spiral Wrapping |
| Applicable Tapes | High-temp, mica, ceramic fiber, PVC, vinyl, cloth, fleece tape |
| Wire Feeding Arm | Built-in 500mm track |
✅ Key Features of KK-T04 Tape Wrapping Machine
- 🔄 Spiral tape wrapping ensures tight, even coverage
- 🔁 Dual-direction spindle for complex cable configurations
- 📏 500mm wire feeder enhances handling of long/hard harnesses
- 🧵 Supports high-temp and soft tapes for various applications
- ⚙️ Stable motor control for wrinkle-free, consistent finish
- 🎛️ Optimized for automotive, industrial, and custom cable use
🔍 Applications of the Tape Wrapping Machine
- 🚘 Automotive harnesses and wiring bundles
- 🏭 Industrial equipment insulation and bundling
- 🔥 Heat- and abrasion-resistant cable processing
- 🧩 Flexible production across tape types and cable formats
🏭 Use Case Example
The KK-T04 tape wrapping machine automates spiral tape insulation for extended-length automotive wire harnesses. Using the 500mm feeder, operators achieve better control over feeding, precision overlap, and tape tension—delivering consistent wrapping even with heavier or less flexible cables. Ideal for harsh environments, it improves wrap resistance and reduces labor costs by up to 70%.
💬 Frequently Asked Questions
What types of tape does it support?
It supports mica, ceramic fiber, high-temperature, vinyl, fleece, PVC, and cloth tapes.
Can it wrap extra-long wire harnesses?
Yes, the 500mm extended feeding arm ensures smooth handling and alignment of long or rigid harnesses.
Can I reverse spindle direction?
Yes, the KK-T04 supports both forward and reverse spindle operation for flexible wrapping orientations.
What is the maximum wire diameter?
Standard version supports up to 25mm diameter. Optional version available for 1–12mm wires.
Explore more on automotive wire harness manufacturing and ISO 6722 wiring standards.
📩 Request Free Product Demo
Contact our team for detailed technical specs and pricing
