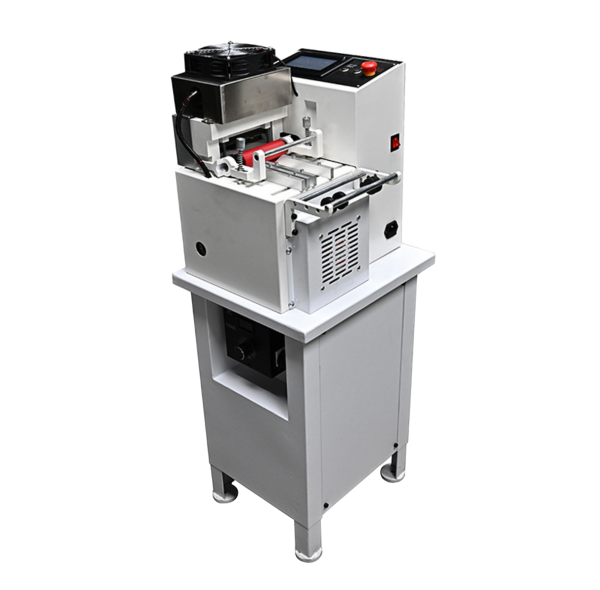

KK-TC02 Hot Wire Cutting Machine – Thermal Cutting for Textile & Cable Applications
The KK-TC02 Computerized Hot Wire Cutting Machine is engineered for high-speed and high-precision cutting of flexible materials such as heat shrink tubing, braided tape, and elastic bands. This heating wire-type machine utilizes thermal cutting technology to seal edges cleanly and prevent fraying, making it ideal for applications in textile, garment production, and cable processing.
📐 Product Specifications – KK-TC02
| Product Name | Computerized Hot Wire Cutting Machine |
| Model | KK-TC02 |
| Dimensions | 400 × 300 × 430 mm |
| Power Supply | 220V |
| Cutting Length Range | 0.1 mm – 9999.9 mm |
| Speed | Up to 150 cuts/min (max. 48,000/hour) |
| Accuracy | ±0.1 mm |
| Max Temperature | 880°C (adjustable) |
| Materials | Shrink tubing, elastic bands, nylon tapes, ribbons, cords, straps |
🔧 Key Features of KK-TC02 Hot Wire Cutter
- 🔥 Thermal cutting seals edges to prevent fraying
- ⚡ High cutting speed up to 150 cuts per minute
- 📏 Ultra-wide length range (0.1 mm to 9,999.9 mm)
- 🌡️ Adjustable heating temperature up to 880°C
- 🧵 Compatible with ribbons, cords, tapes, shrink tubes
- 💼 Compact design for bench-top industrial use
🏭 Applications of the Hot Wire Cutting Machine
- 🎽 Garment industry: shoulder straps, elastic band trimming
- 📦 Packaging materials: ribbon cutting and sealing
- 🔌 Cable insulation: heat shrink tube cutting and sealing
- 🪢 Textile and fiber processing: nylon tape and cord cutting
- 🎀 Decorative industry: colorful ribbon and bow production
Discover how heat shrink tubing works or read about hot wire cutting technology for industrial processing.
📩 Request Technical Sheet or Demo
Contact our technical team for more information or customization.
