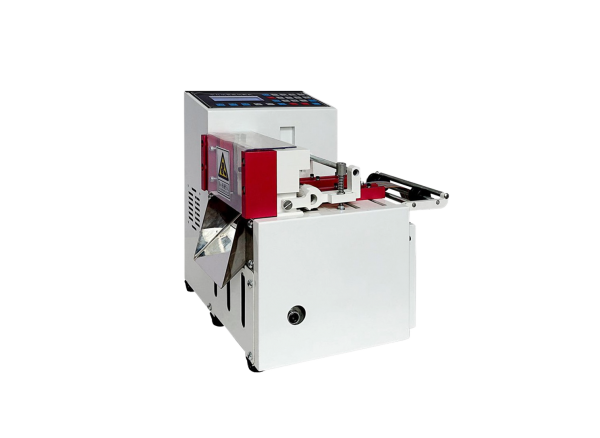

KKTC-100 High-Speed Precision Cable Cutting Machine

KKTC-100 High-Speed Precision Cable Cutting Machine

Parameter Specification
Model KKTC-100
Power Supply AC 220V 50/60Hz
Machine Dimensions 400 × 370 × 410 mm
Machine Weight 32 kg
Total Power 600 W
Rated Power 400 W
Cutting Diameter 2 – 8 mm
Cutting Length 0.01 – 99,999.99 mm
Blade Width 100 mm
Blade Material High-speed steel
Output Capacity Approx. 6,000 cuts/hour
Program Storage Program No. 00–99
Display Type Digital Display



Category:

KKTC-100 High-Speed Precision Cable Cutting Machine

The KKTC-100 cable cutting machine delivers industrial-grade precision with ±0.01mm accuracy, handling cables from 2-8mm diameter at speeds up to 6,000 cuts/hour. Engineered for demanding production environments, its programmable digital control and high-speed steel blade ensure consistent, burr-free cuts for wire harness manufacturing, electronics assembly, and custom cable production.

🔧 Technical Specifications

Model KKTC-100
Power Supply AC 220V 50/60Hz
Dimensions 400 × 370 × 410 mm Compact Design
Weight 32 kg
Total Power 600 W
Rated Power 400 W
Cutting Diameter 2 – 8 mm
Cutting Length 0.01 – 99,999.99 mm ±0.01mm Precision
Blade Width 100 mm
Blade Material High-speed Steel (HSS) Long-lasting
Output Capacity Approx. 6,000 cuts/hour High Efficiency
Program Storage Program No. 00–99 100 Presets
Display Type Digital Display

Production Efficiency Calculator



DAILY OUTPUT CAPACITY
96,000 cuts
Based on 6,000 cuts/hour at 500mm length

✅ Key Advantages

Precision Cutting

Digital control ensures ±0.01mm dimensional accuracy across all cable lengths from 0.01mm to 99,999.99mm, eliminating material waste.

Programmable

Store 100 cutting programs for instant recall – ideal for batch production with multiple cable specifications.

High Efficiency

6,000 cuts/hour capacity reduces production bottlenecks. Compact size (400×370×410mm) saves valuable floor space.

🛠️ Industrial Applications

🔌

Wire Harness Production

Precision cutting for automotive and appliance wiring

📱

Electronics Assembly

Component leads and internal cabling

🏗️

Construction Cables

Electrical wiring and conduit preparation

⚡

Custom Cable Shops

Bulk cable cutting for specialized orders

🏭 Production Case Study

🏭

Automotive Supplier Efficiency Gains

One automotive harness manufacturer reduced their cable preparation time by 45% after implementing 3 KKTC-100 units. The machines’ 6,000 cuts/hour capacity and program storage allowed them to eliminate two manual cutting stations while increasing daily output from 28,000 to 42,000 cable segments.

45%
Time Reduction
50%
Labor Savings
0.1%
Scrap Rate
6 Weeks
ROI Period

💬 Technical Questions

What’s the blade replacement interval?
+

The high-speed steel blade lasts approximately 150,000 cuts under normal conditions. Replacement takes under 5 minutes with standard tools.

Can it cut armored or shielded cables?
+

Standard configuration handles standard PVC/XLPE insulated cables. For armored cables, we recommend our KKTC-200HD model with reinforced cutting mechanism.

Is operator training provided?
+

Yes, we provide comprehensive onsite training covering operation, programming, and maintenance. Video tutorials and manual included.

Ready to Upgrade Your Cable Production?

Includes warranty and  technical support
