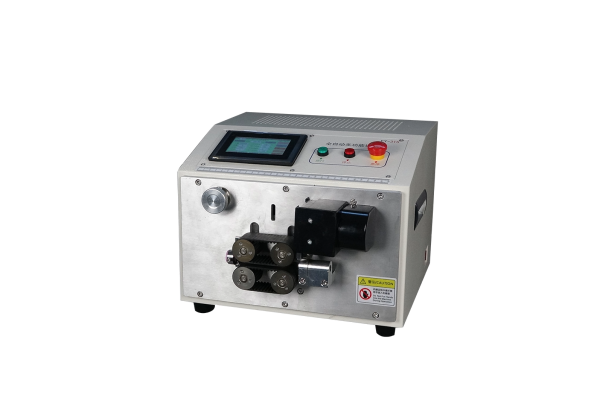

KKTC-315 Tube Cutting Machine – Compact & High-Speed
The KKTC-315 is an industrial-grade tube cutting machine engineered for flexible pipe materials like PVC, silicone, and rubber tubing. With ±0.01mm tolerance and up to 14,000 cuts/hour, it’s built for accuracy and productivity.
Key Features of the KKTC-315 Tube Cutter
- ⏱ Up to 14,000 cuts/hour – built for high-volume production
- 🎯 Precision cutting with ±0.01 × L tolerance
- 📏 Cutting range: Ø 3–15 mm, length up to 99,999.99 mm
- 🧠 Stores up to 99 cutting programs
- 🔪 22mm utility blade for clean and reliable cuts
Technical Specifications
| Model | KKTC-315 |
|---|---|
| Input Power | AC 220V 50/60Hz |
| Machine Dimensions | 360 × 405 × 295 mm |
| Net Weight | 25 kg |
| Total Power | 600 W |
| Rated Power | 400 W |
| Cutting Diameter Range | Ø 3 – 15 mm |
| Cutting Length Range | 0.1 – 99,999.99 mm |
| Cutting Tolerance | ± 0.01 × Length |
| Blade Width | 22 mm |
| Blade Material | Utility Blade |
| Production Capacity | Approx. 14,000 cuts/hour |
| Program Storage | 99 memory slots |
Ideal for Flexible Tubing Applications
Whether you’re processing automotive wire harness components or cutting heat shrink tubing, the KKTC-315 handles a wide range of soft materials with consistent precision. Learn more in our 2025 Tube Shrink Wrap Machine Guide.
Why Choose KKTC-315?
- 🔧 Reliable for industrial wire processing and tube cutting lines
- 🔄 Compatible with external feeding systems and conveyors
- 🌍 Backed by CableMachineries’ global after-sales network
