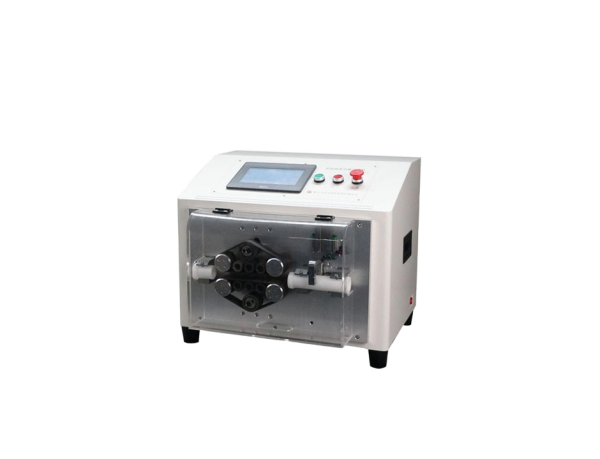

Tube Cutter Machine KKTC-325 – Precision Cutting for PVC, Silicone & Rubber Tubes

The KKTC-325 tube cutter machine delivers high-speed, high-precision cutting for flexible tubing materials such as PVC, rubber hoses, silicone tubes, and corrugated conduit. Designed with industrial-grade performance and a user-friendly interface, it perfectly suits manufacturers in automotive wiring, cable assemblies, and industrial tube processing.



Technical Specifications

Model	KKTC-325
Cutting Length	0.1mm – 99,999.9mm
Cutting Outer Diameter	Up to 32mm
Cutting Speed	100~120 pcs/min (50mm length)
Drive System	Servo Motor + Steel Roller Drive
Control System	Touchscreen + Microcontroller (64-bit)
Power Supply	220V 50/60Hz
Dimensions	560mm × 450mm × 480mm
Weight	52 kg

Key Features of Our Tube Cutter Machine

• ⚙️ 32mm cutting capacity fits a wide range of tubes, including automotive corrugated hoses.
• 🎯 High-precision servo drive guarantees smooth, consistent feeding and clean cut edges.
• 🧠 Smart touchscreen interface allows easy job memory recall and supports multiple languages.
• 🛡️ Built-in safety systems protect operators and detect errors effectively.
• 🔌 Plug-and-play system enables minimal setup and low maintenance for fast operation.

Applications of the KKTC-325 Tube Cutter

This automatic tube cutter machine finds wide use in the automotive industry, electronics manufacturing, and cable harness assembly plants. Moreover, it delivers reliable and clean cuts on heat shrink tubes, rubber hoses, flexible conduits, PVC sleeves, and silicone tubing. Thanks to its robust structure and precision system, it complies with the ISO 20653:2013 standards for wire insulation and tubing.
