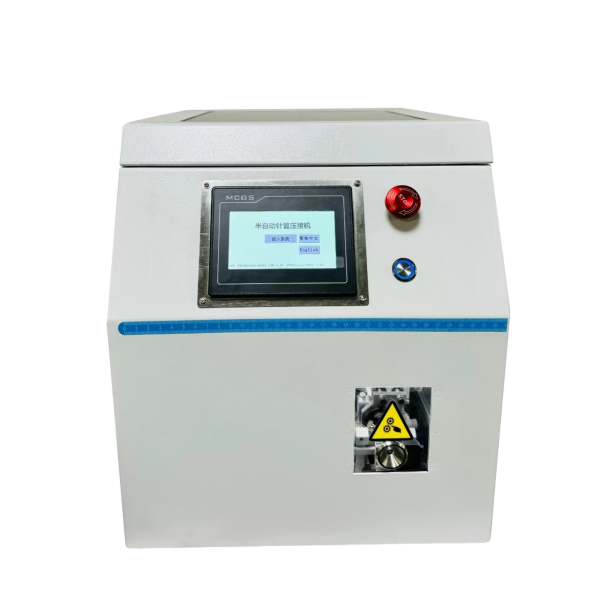

Tubular Terminal Stripping & Crimping Machine (KK-Tubular)

Precision, Speed, and Die-less Versatility

The KK-Tubular is a precision stripping and crimping machine designed specifically for tubular terminals. With ±0.03mm crimping accuracy and a fast 3-second cycle time per terminal, this compact unit delivers outstanding consistency and efficiency for BVR wire applications ranging from 0.5mm² to 4.0mm² — all without needing to change dies.

🔧 Key Specifications

Item	Specification
Model	KK-Tubular
Crimping Accuracy	±0.03mm
Crimping Efficiency	~3s/terminal
Crimping Shape	Quadrilateral
Stripping Length	Max 17mm
Wire Compatibility	BVR wire 0.5 / 0.75 / 1.0 / 1.5 / 2.5 / 4.0mm²
Crimping Range	0.5–4.0mm² (no die change)
Dimensions	350 × 450 × 400 mm
Weight	40kg

🌟 Why Choose KK-Tubular?

• ⚙️ Die-less operation for various wire sizes (0.5–4mm²)
• 🎯 High repeatability with ±0.03mm accuracy
• 🚀 Fast processing cycle (~3 seconds per terminal)
• 📏 Integrated stripping with up to 17mm length
• 📐 Uniform quadrilateral crimping shape

📌 Application Scenarios

• Control panel manufacturing
• Industrial wiring harnesses
• Electric power systems
• Production lines needing fast tubular terminal processing

❓ Frequently Asked Questions

🔄 Does the KK-Tubular require die changes for different wires?

No. It supports crimping for 0.5 to 4mm² tubular terminals without changing dies.

📏 Is the stripping length customizable?

Yes, you can set stripping length up to 17mm depending on your application.

🔌 What type of wire is compatible?

It’s optimized for BVR wires: 0.5 / 0.75 / 1.0 / 1.5 / 2.5 / 4.0mm².
