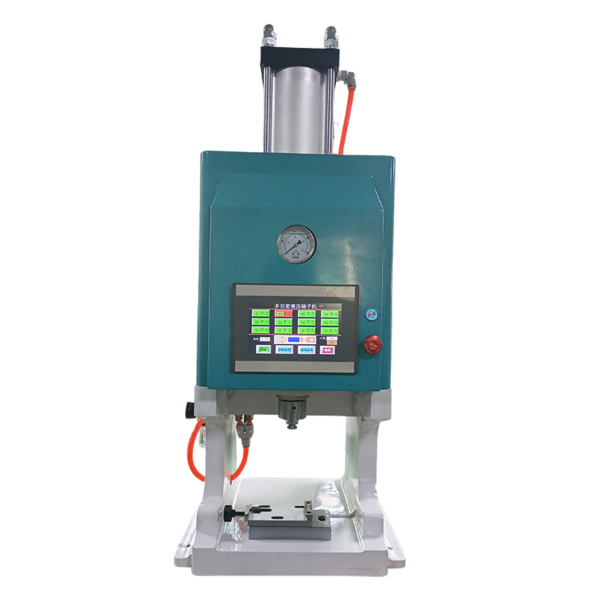

10T Hydraulic Terminal Crimping Machine – KK-10T
High-Force Hydraulic Crimping for Large Gauge Terminals
The KK-10T Hydraulic Terminal Crimping Machine delivers 10 tons of pneumatic-electric hybrid power for high-volume crimping tasks. Designed for terminals up to 70mm², it features ultra-precise ±0.03mm accuracy and supports both hexagonal and quadrilateral quick-change dies. The 7″ touchscreen control panel makes setup and operation intuitive—ideal for heavy-duty industrial cable harness processing.
🔧 Technical Specifications
| Item | Specification |
|---|---|
| Model | KK-10T Hydraulic |
| Drive Type | Pneumatic-Electric Hybrid |
| Crimping Range | 2.5–70mm² |
| Voltage | AC220V 50/60Hz (Optional: 110V) |
| Stroke | 30mm (Customizable to 40mm / 50mm) |
| Crimping Accuracy | ±0.03mm |
| Compatible Dies | Quick-change Hexagonal / Quadrilateral |
| Display | 7″ Touchscreen Interface |
| Optional Features | Pressure Monitoring System |
| Dimensions | 650 × 520 × 920 mm |
| Weight | 150kg |
🌟 Key Highlights
- 🔩 Crimps terminals up to 70mm² with 10T hydraulic pressure
- 🛠️ Quick-change die system for hexagonal or quadrilateral shapes
- 📏 ±0.03mm crimping precision for consistent quality
- 🖥️ 7″ Touchscreen for intuitive parameter adjustment
- ⚡ Pneumatic-electric hybrid drive for smooth operation
- 📡 Optional real-time pressure monitoring system
📌 Applications
- Industrial Power Cable Assembly
- Automotive Battery Terminals
- Heavy-Duty Electrical Harnesses
- Railway, Solar, and Energy Infrastructure
❓ Frequently Asked Questions
🧲 What types of terminals can this machine handle?
It supports copper and aluminum terminals within 2.5–70mm², ideal for power cables and high-load applications.
📐 Can the stroke be customized?
Yes, the standard 30mm stroke can be upgraded to 40mm or 50mm for larger terminals.
🤖 Is it suitable for automation lines?
Absolutely. The KK-10T supports programmable control and optional real-time pressure monitoring, making it ready for integration into automation lines.
