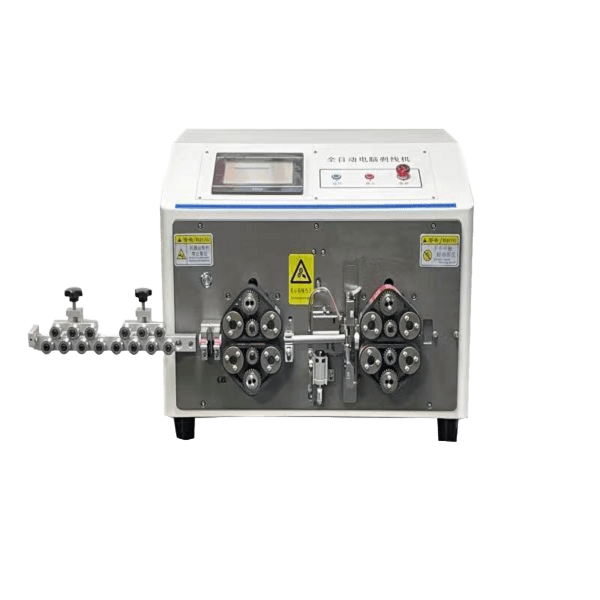

The Fully Automatic Computer-Controlled Wire Stripping Machine(KK-508)
The Fully Automatic Computer-Controlled Wire Stripping Machine(KK-508)
The Fully Automatic Computer-Controlled Wire Stripping Machine(KK-508)
  1. The Fully Automatic Computer-Controlled Wire Stripping Machine(KK-508)
  2. The Fully Automatic Computer-Controlled Wire Stripping Machine(KK-508)
  3. The Fully Automatic Computer-Controlled Wire Stripping Machine(KK-508)

The Fully Automatic Computer-Controlled Wire Stripping Machine(KK-508)

Product Details Specifications
Model KK-508
Dimensions 680mm × 560mm × 480mm
Weight 90 kg
Display 7-inch Kinco HMI Touchscreen (Chinese/English switchable)
Data Storage 99 Program Presets
Power Input AC 175V–250V, 50/60Hz
Power Rating 500W–1100W
Cutting Length Range 1mm–99,999mm
Stripping Length Front: 1–300mm / Rear: 1–100mm
Max. Cable Outer Diameter (OD) 1–12mm
Compatible Cables Multi-core Jacketed Cables, Rubber-insulated Wires (inner/outer stripping)
Conduit Diameter Ф4mm–Ф12mm
Blade Material Imported High-Speed Steel (HSS)
Lifting Wheel Mechanism Motorized with Touchscreen Pressure Regulation
Drive System 16-Wheel Synchronized, Belt Feeding, Servo + Stepper Hybrid Drive
Stripping Capacity 400–1,200 strips/hour (wire-type dependent)
Precision ≤0.02mm error/meter (pulse equivalent)
Blade Stepping Accuracy Hybrid silent motor, 0.1mm/step (anti-vibration design)
Automation Features Auto Wire Feeding/Ejection, Scheduled Start
Category:
What It Does:
This machine automatically strips and cuts multi-core jacketed cables and rubber-insulated power wires (OD 1-12mm). It handles precision tasks like:
  • Cutting wires from 1mm to 99,999mm in length.
  • Stripping the front end (1-300mm) and rear end (1-100mm) of the insulation.
    Perfect for power cord production in automotive, electronics, and industrial settings.
