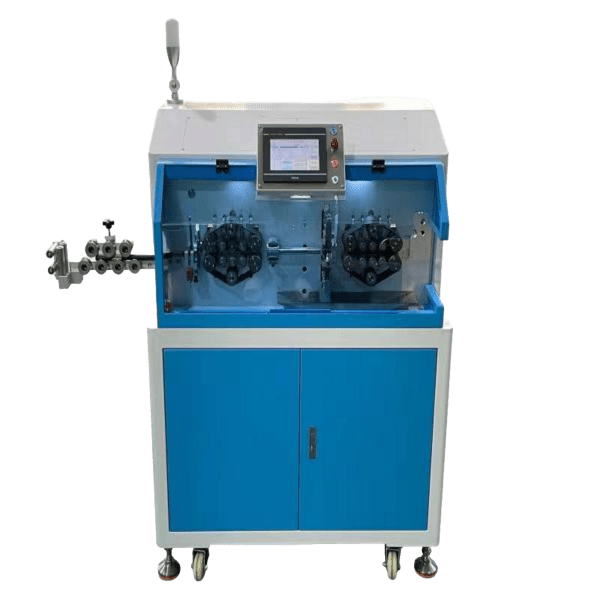

The Fully Automatic Computer-Controlled Wire Stripping Machine(KK-509)

The Fully Automatic Computer-Controlled Wire Stripping Machine(KK-509)

Product Details Specifications
Model KK-509
Dimensions 680mm × 620mm × 1350mm
Weight 135 kg
Display 7-inch Touchscreen (Chinese/English switchable)
Power Input AC 175V–250V, 50/60Hz
Power Rating 500W–1100W
Wire Feeding Method Integrated Wire Gripper
Cutting Length Range 1mm–99,999mm
Stripping Length Front: 0.1–250mm / Rear: 0.1–100mm
Conduit Diameter Ф4mm–Ф12mm
Compatible Cables Multi-core Jacketed Cables & Rubber-insulated Wires (with integrated inner/outer conductor stripping capability)
Blade Material High-Speed Steel/Tungsten Carbide
Drive Mechanism 16-Wheel Synchronized Drive System with Track-Type Feeding (Servo + Stepper Hybrid Motor Configuration)
Stripping Capacity 400–1,000 strips/hour (Adjustable based on wire type/size)
Wire Pressure Control Auto-adaptive
Lifting Wheel Mechanism Motor-Driven Lead Screw Actuation
Precision Metrics Pulse Equivalent: ≤0.02mm error per meter
Blade Stepping Accuracy Hybrid silent type 0.1mm/step (anti-vibration design)
Automation Features Auto Wire Feeding/Ejection, Scheduled Start
Category:
What It Does:
This machine is a fully automatic wire stripping solution for multi-core jacketed cables and rubber-insulated power wires. It handles integrated inner/outer conductor stripping (front: 0.1–250mm, rear: 0.1–100mm) and precise cutting (1mm–99,999mm). Ideal for automotive, electronics, and industrial wiring production, it processes cables with OD 4–12mm (Ф4mm—Ф12mm) using an integrated wire gripper for secure feeding.
