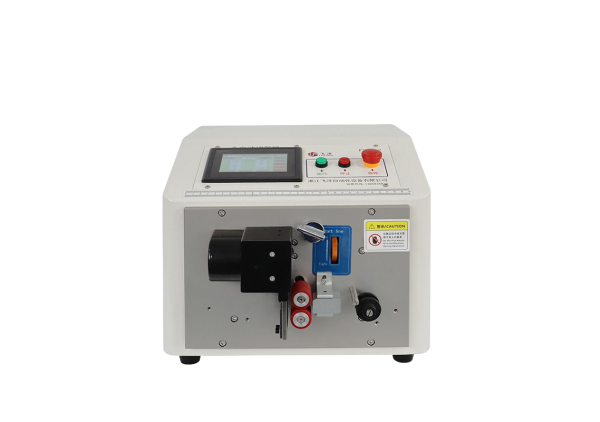

Automatic Heat Shrink Tube Cutting Machine – Model KK‑TC302
The KK‑TC302 automatic heat shrink tube cutting machine is a high-speed, precision solution crafted for cutting heat shrink tubing, PVC sleeves, and flexible plastic hoses. As an advanced automatic tube cutting machine, it delivers up to 18,000 cuts/hour with burr-free accuracy, making it ideal for wire harness, electronics, and cable manufacturing sectors.
Technical Specifications – KK‑TC302 Automated Tube Cutter
| Model | KK‑TC302 |
| Input Power | AC 220V 50/60Hz |
| Machine Dimensions | 365 × 450 × 315 mm |
| Net Weight | 21 kg |
| Total / Rated Power | 400 W / 200 W |
| Cutting Diameter Range | Ø 1–8 mm |
| Cutting Length Range | 0.1–99,999.99 mm |
| Cutting Tolerance | ± 0.01 × Length (L) |
| Blade Width | 22 mm |
| Blade Material | Imported Tungsten Steel |
| Production Capacity | Approx. 18,000 cuts/hour |
| Program Storage | 00–99 memory slots |
| Display Type | 4.3″ Touchscreen |
Key Highlights – Automatic Flexible Tubing Cutter
- 🖥️ Fully touchscreen CNC interface – easy parameter setup and recipe recall.
- ⚡ Exceptional throughput: up to 18,000 cuts/hour for efficient workflow.
- ✂️ Dual-direction precision blade ensures clean, burr-free cuts every time.
- 🔊 Rounded compact design saves workshop space and improves aesthetics.
- 🔩 Built with imported tungsten steel blade – high durability and longevity.
- ✔ Engineered specifically as an automatic flexible tubing cutter for delicate materials.
Applications – Versatile Hose & Tube Cutting Solutions
- Heat shrink tubing processing for automatic heat shrink tube cutting machine applications.
- Cutting PVC sleeves, flexible rubber hoses, silicone sleeves in printed wire harness lines.
- Precision cutting of soft plastic tubes (PVC, PET) in industrial assembly.
- Integration with inline shrink wrap lines or automated tubing production.
Why Choose KK‑TC302
As an advanced automatic tube cutting machine, the KK‑TC302 combines speed, precision, and ease of use. It’s designed to meet stringent quality and efficiency requirements in high-volume manufacturing. Whether used as a standalone unit or integrated into a larger automatic hose cutting machine line, it delivers reliable, burr-free cuts with minimal operator training.
FAQs – Automatic Plastic Tube Cutting Machine
Is KK‑TC302 suitable for soft plastic tube cutting?
Yes, the KK‑TC302 handles PVC, silicone, PET, and heat-shrink tubing precisely without deformation.
Can it be integrated into an automatic hose cutting line?
Absolutely. Its compact footprint and high-speed operation make it perfect as a module in a fully automatic hose cutting machine setup.
How user-friendly is the touchscreen interface?
The 4.3″ touchscreen offers graphical guidance and multilingual support, making setup intuitive even for new operators.
