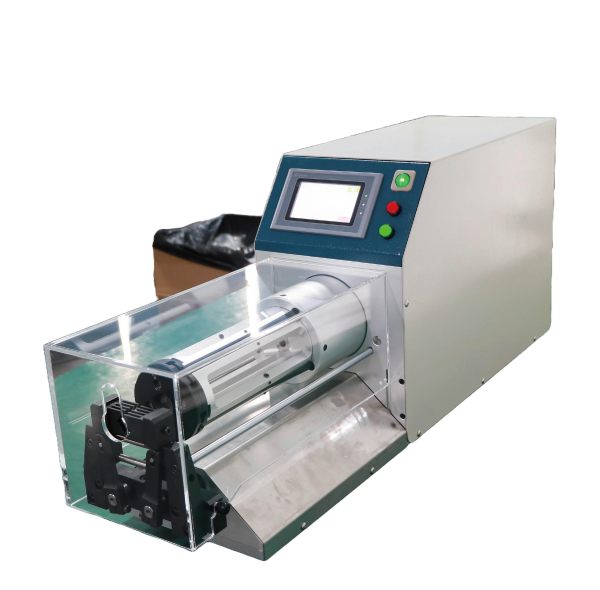

KK-8608 Heavy-Duty Wire Stripping Machine – EV & Industrial Power Cable Specialist
The KK-8608 Heavy-Duty Wire Stripping Machine is designed for thick-walled power cables, coaxial lines, and EV wiring harnesses.
Featuring a quad-blade rotary cutter system and multi-axis servo motion control, it delivers clean, burr-free stripping in compliance with IEC 60228 standards.
Its precision ball screw drive ensures ±0.03 mm accuracy across up to 9 stripping layers, making it ideal for high-volume, high-specification applications in EV manufacturing, renewable energy, and industrial power systems.
📐 Machine Specifications
| Max. Stripping Length | 0 – 90 mm |
| Conductor Diameter Range | 1.5 – 18 mm |
| Length Setting Resolution | 0.01 mm |
| Depth Setting Resolution | 0.01 mm |
| Max. Stripping Layers | 9 |
| Blade Configuration | 4 rotating tungsten carbide blades |
| Power Supply | AC 110V/220V ±10%, 50/60 Hz |
| Power Consumption | 600 W |
| Dimensions (L×W×H) | 720 × 230 × 350 mm |
| Net Weight | 42 kg |
| Throughput | 400 – 800 pcs/h (cable-dependent) |
🔧 Key Features
- ⚙️ Processes thick-walled power cables, coaxial lines, and EV harnesses
- 🌀 Quad-blade rotary cutter for burr-free stripping
- 🎯 ±0.03 mm precision with ball screw + multi-axis servo system
- 🖥️ Advanced HMI with quick programming for multi-segment/multi-layer stripping
- ⚡ Continuous operation mode for high-volume production
- 🛡️ IP54 enclosure for harsh workshop environments
🏭 Typical Applications
- 🚗 EV battery cable processing (ISO 6722-3 Class D)
- 🔋 Renewable energy combiner box wiring (UL 6703)
- 🏭 Industrial power cables (IEC 60502-1)
- 📡 High-diameter coaxial cable stripping
Explore more about wire stripping standards and
cable harness best practices.
📩 Request Quotation or Technical Sheet
Meet EV and industrial cable stripping demands with KK-8608.
