Quality & Testing in Wire Harness Manufacturing
In today’s fast-paced industries—from automotive to aerospace and industrial automation—wire harness reliability is non-negotiable. A single failure can lead to costly downtime, safety hazards, or even product recalls. That’s why modern manufacturers invest heavily in wire harness testing, inspection, and quality assurance systems.
At CableMachineries.com, we not only provide automation equipment but also help clients establish complete quality control workflows, ensuring harness meets IPC, ISO, or UL standards. Let’s see how quality assurance works in wire harness manufacturing and what machines make it possible.
Why Quality Control Matters in Wire Harness Production
A wire harness is more than just bundled cables—it’s a critical electrical system that connects sensors, motors, and control modules. Any weak crimp, missing seal, or broken conductor can cause major system failures.
Quality control ensures:
- Consistent electrical performance (continuity, insulation resistance)
- Mechanical durability (tensile strength, vibration resistance)
- Compliance with international standards like IPC/WHMA-A-620 and ISO 9001
As harnesses become more complex—especially in EVs and industrial robotics—testing and traceability have become integral parts of production.
Visual Inspection and Process Verification
The first step in quality assurance is visual inspection. Automated vision systems now replace manual checks, ensuring terminals are properly crimped, seals are positioned correctly, and insulation is undamaged.
CableMachineries integrates vision inspection modules into its production lines. These systems can detect orientation errors, terminal gaps, and wire color mismatches with precision up to 0.02mm.
Visual systems are especially useful in multi-connector harnesses where human inspection would be too slow or inconsistent.
Electrical Testing: Continuity, Insulation, and Resistance
Once the visual check passes, harnesses undergo electrical testing—the most important step in verifying functionality.
Continuity tests confirm that all circuits are properly connected. Insulation resistance tests ensure there are no shorts between adjacent wires. More advanced tests measure voltage drop, contact resistance, or even dynamic signal performance.
CableMachineries’ Automatic Wire Harness Tester integrates directly with production lines, offering multi-channel testing for large connectors. Each harness is verified before packaging, reducing returns and ensuring 100% traceability.
Many manufacturers also link their test systems to MES databases, allowing full documentation of test results for each batch or serial number.
External resource: Cirris Systems – Guide to Wire Harness Testing
Mechanical and Environmental Testing
Beyond electrical checks, mechanical testing ensures the physical durability of the wire harness. Common methods include:
- Pull Force Testing: verifies crimp strength between terminal and conductor
- Flex/Bend Testing: simulates real-world motion stress
- Vibration and Thermal Cycling Tests: check for fatigue under extreme conditions

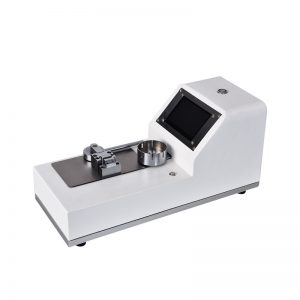

CableMachineries provides optional crimp pull testers that measure the tensile force applied before failure, ensuring terminals meet required standards. These systems can be calibrated according to IPC-TM-650 methods, guaranteeing data consistency.
Environmental chambers—offered by third-party labs or OEM partners—simulate temperature, humidity, and vibration cycles for validation under real-world use cases.
Calibration, Maintenance, and Operator Training
Even the most advanced testing machines require periodic calibration and preventive maintenance to maintain accuracy.
CableMachineries supports customers with regular calibration services and remote diagnostics through its Support & Warranty page.
Operator training is also essential—technicians must understand how to interpret test results, adjust machine parameters, and record data correctly. Properly trained staff are the key to maintaining consistent quality.
Routine checks include:
- Replacing worn blades or crimp applicators
- Cleaning sensors and connectors
- Verifying force and displacement sensors
- Updating test software for new wire types
Standard Compliance and Certification
To ensure global compatibility and customer confidence, wire harness manufacturers must comply with industry standards:
- IPC/WHMA-A-620: Defines acceptability criteria for wire harness assemblies
- ISO 9001: Quality management framework
- UL and CE: Electrical safety and product conformity
- IATF 16949: Automotive quality management system
Common Quality Issues and Troubleshooting
Even with the best equipment, issues can arise during production. Typical problems include:
- Inconsistent crimp height or pull strength
- Misaligned terminal orientation

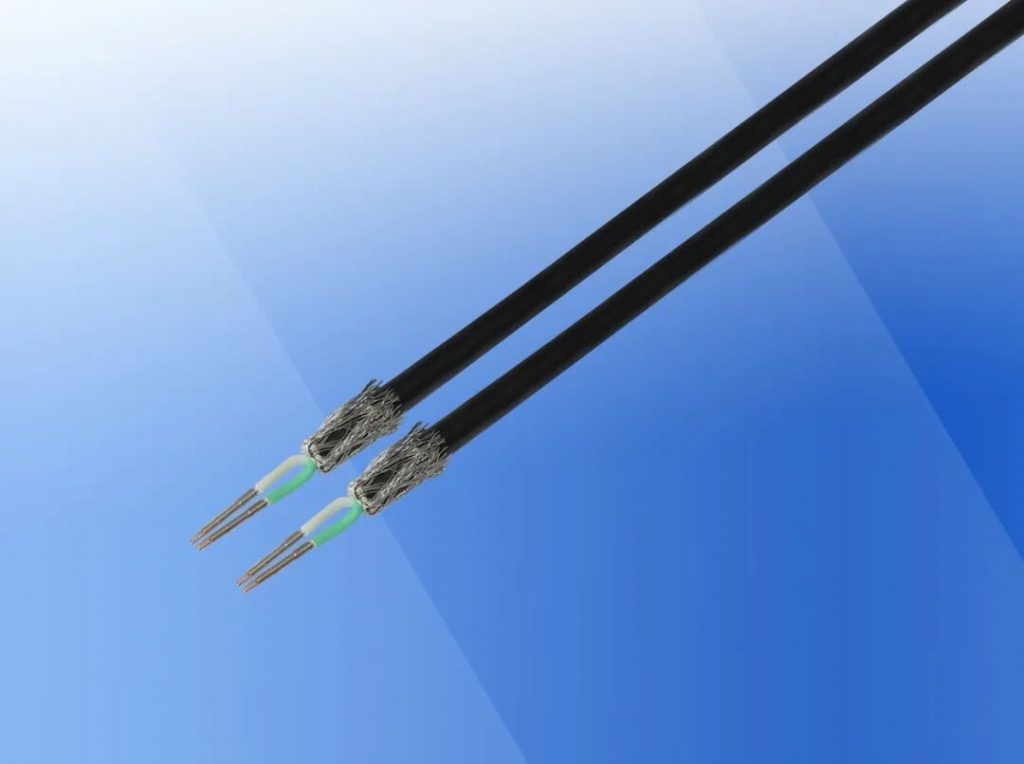

- Incomplete wire stripping or insulation damage
- Seal misplacement or missing waterproof plugs
Conclusion
Quality and testing are the backbone of reliable wire harness manufacturing. From visual inspection to electrical and mechanical testing, every step ensures the harness will perform flawlessly under demanding conditions.
At CableMachineries.com, we design automation systems that combine production efficiency with uncompromising quality control. Whether you’re upgrading your factory’s testing capabilities or building a new line from scratch, our engineering team can help you integrate reliable, standards-compliant solutions.
Investing in proper testing isn’t just about compliance—it’s about building trust, safety, and long-term performance in every harness you deliver.
