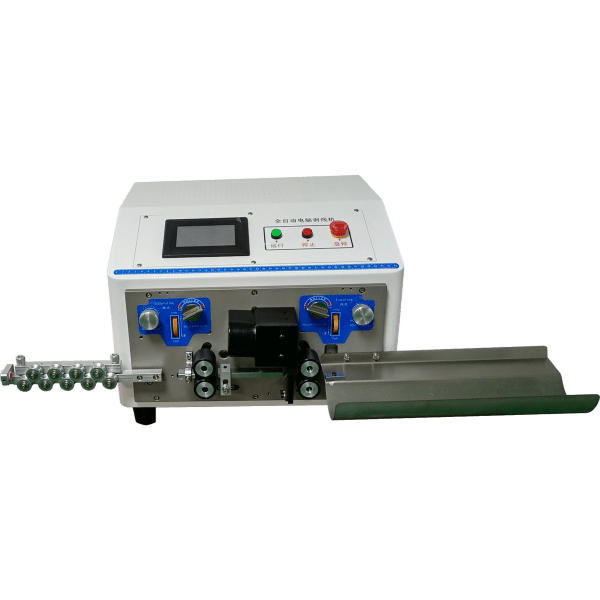

Automatic Wire Sheathed Cable Stripping Machine

Automatic Wire Sheathed Cable Stripping Machine

Item Specifications
Model Number KK-503
Overall Dimensions 470mm(L) × 430mm(W) × 380mm(H)
Weight 40 kg
Display Type 4.5-inch touchscreen
Power Input (Switching Power Supply) AC 175–250V, 50/60Hz
Rated Power 200W
Cutting Length Range 0.1mm–99,999.9mm
Stripping Length Capacity Front: 0.1–150mm
Rear: 0.1–80mm
Wire Core Cutting Range 1–6 mm² (cross-sectional area)
Cutting Tolerance ≤ 0.002 × L mm (L = cutting length)
Mid-Span Stripping Capability Simultaneous processing at up to 13 locations
Conduit Diameter 6–10mm
Blade Material Tungsten Carbide / Imported High-Speed Steel
Drive Mechanism 4-Wheel Drive System
Wire Stripping Capacity 2,000–4,000 strips/hour
Wire Pressure Control Yes (adjustable)
Precision Metrics Zero deviation within 5 meters
Total Stripping Capacity 999,999 strips
Batch Processing Quantity 99,999 strips/batch
Blade Stepping Accuracy 0.1mm/step silent hybrid stepper motor
Automation Features Auto wire feeding/ejection, scheduled start
Category:

KK-503 Automatic Wire Stripping Machine – Mid-Span & Multi-Core Pro

The KK-503 Automatic Wire Stripping Machine is engineered for precision stripping of computer, power, and multi-core cables ranging from 1–6mm². Equipped with mid-span stripping at up to 13 locations, a silent hybrid stepper motor, and tungsten steel blades, it’s designed for demanding tasks in electronics labs, wiring production lines, and cable harness factories. With high-speed processing of up to 4,000 wires/hour, this machine takes automation to the next level.

📐 Machine Specifications

Model Number KK-503
Overall Dimensions 470 × 430 × 380 mm
Weight 40 kg
Display Type 4.5-inch Touchscreen
Power Input AC 175–250V, 50/60Hz
Rated Power 200W
Cutting Length Range 0.1mm – 99,999.9mm
Stripping Length Front: 0.1–150mm, Rear: 0.1–80mm
Wire Core Range 1–6 mm²
Cutting Tolerance ≤ 0.002 × L mm
Mid-Span Capability Up to 13 simultaneous positions
Conduit Diameter 6–10mm
Blade Material Tungsten Carbide / High-Speed Steel
Drive Mechanism 4-Wheel Servo Drive
Stripping Speed 2,000–4,000 pcs/hour
Wire Pressure Control Yes (Adjustable)
Precision Range Zero deviation within 5 meters
Max Strips (Total) 999,999 pcs
Batch Processing Up to 99,999 pcs
Stepper Accuracy 0.1mm/step (Silent Hybrid Motor)
Automation Functions Auto wire feed/eject, scheduled start

🔧 Key Features

  • ⚙️ Handles sheathed cables and multi-core wires with front, rear, and mid-span stripping
  • 🌀 4-wheel grip ensures ultra-stable, slip-free wire feeding
  • 🎯 Precision blade movement: 0.1mm/step via hybrid stepper motor
  • 🪓 Tungsten carbide blades for extreme durability and clean cuts
  • 🖥️ Touchscreen interface for quick setup and programmable automation

🏭 Typical Applications

  • 💡 Cable harness processing for electronics and appliances
  • 🚗 Automotive wiring and signal cable preparation
  • 🔌 Power cord and computer cable stripping
  • 🛠️ Wire processing in lab-scale and industrial settings

Interested in how mid-span stripping works? Explore wire stripping technologies and learn about cable harness best practices.


📩 Request Quotation or Technical Sheet

Speak with our automation experts to customize your setup.
