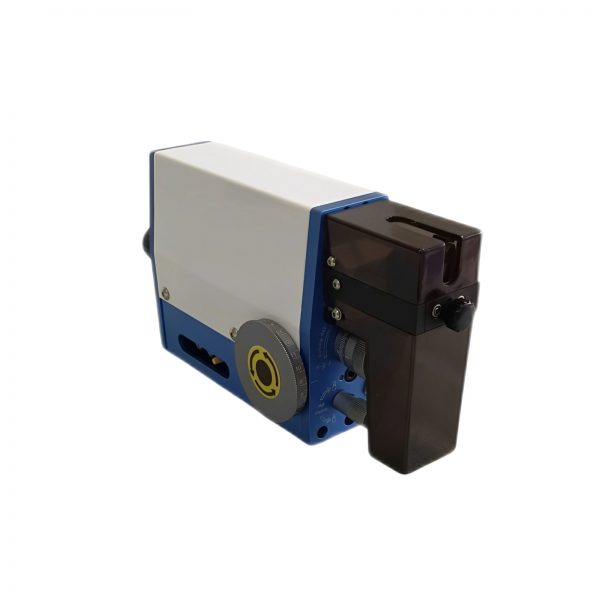

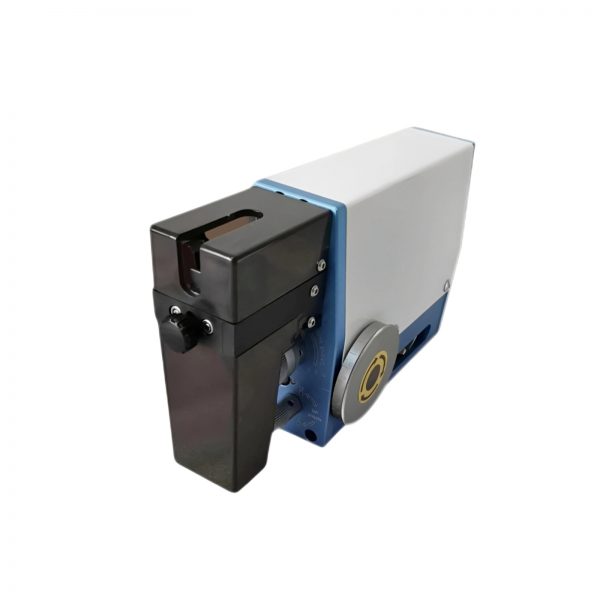

Pneumatic Wire Stripping Machine | KK Pneumatic AWG 32–12 Cable Stripper
The KK Pneumatic Wire Stripping Machine is a compact, high-precision cable stripping solution designed for manufacturers seeking fast and reliable wire processing without electrical power requirements. Powered entirely by compressed air, this machine delivers efficient stripping performance for a wide range of wire types used in electronics, automotive, appliance, and wire harness production.
With its induction-trigger activation system, operators simply insert the wire to begin the stripping cycle automatically. The universal 90° V-blade design eliminates frequent blade changes, reducing downtime and improving productivity. Lightweight, portable, and easy to adjust, the KK Pneumatic model is an ideal solution for workshops, production lines, and maintenance environments.
Looking for complete wire processing solutions? Explore our full range of Wire Processing Machines.
Key Features
- ✔ No electrical power required — simply connect compressed air and start working
- ✔ Automatic induction trigger activation for safer and faster operation
- ✔ Tool-free adjustment for stripping length and blade depth
- ✔ Supports both full strip and partial strip operations
- ✔ Universal 90° V-blade suitable for multiple wire types
- ✔ Processes AWG 32–12 wires without blade replacement
- ✔ Compact and lightweight design weighing only 2 kg
- ✔ High stripping precision of 0.05 mm
- ✔ Adjustable strip length from 1 mm to 20 mm
- ✔ Production capacity up to 2,000 wires per hour
Applications
The KK Pneumatic Wire Stripping Machine is widely used in industries requiring fast and consistent cable preparation.
- Wire harness manufacturing
- Automotive wiring production
- Consumer electronics assembly
- Industrial control panel wiring
- Home appliance cable processing
- Telecommunication cable preparation
- Prototype and repair workshops
For automated terminal processing after stripping, browse our Automatic Terminal Crimping Machines.
Supported Wire Types
The universal blade structure allows the machine to process a wide variety of wire and cable materials without requiring blade replacement.
- PVC insulated wire
- PUR cable
- Rubber insulated wire
- Solid conductor wire
- Stranded conductor wire
- Single-core cable
- Electronic hookup wire
- Signal and control cables
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | KK Pneumatic |
| Wire Range | AWG 32–12 (0.03–4 mm²) |
| Functions | Full Strip / Partial Strip |
| Capacity | 1,800–2,000 Wires Per Hour |
| Strip Length | 1–20 mm |
| Adjustment Precision | 0.05 mm |
| Operating Air Pressure | 0.5–0.7 MPa |
| Dimensions (L × W × H) | 265 × 70 × 135 mm |
| Weight | 2.0 kg |
| Power Source | Compressed Air |
Why Choose a Pneumatic Wire Stripping Machine?
For many factories and workshops, pneumatic stripping equipment remains one of the most cost-effective solutions available. Without the need for electrical power, the machine offers lower operating costs, simple installation, and exceptional reliability.
The automatic induction-trigger system improves operator efficiency by eliminating foot pedal operation, while the precision blade adjustment ensures clean stripping results across different wire sizes.
Its lightweight design also makes it ideal for mobile workstations and flexible production environments.
Increase Productivity and Reduce Downtime
The KK Pneumatic model is designed to reduce setup time and simplify operation. The universal blade system eliminates frequent blade replacement, while tool-free adjustments allow operators to switch between wire specifications quickly.
With a processing capacity of up to 2,000 wires per hour, manufacturers can significantly improve production efficiency while maintaining consistent quality.
Need complete wire processing solutions? Explore our Wire Cutting Machines and Wire Tinning Machines.
Why Buy From Cable Machineries?
- Factory-direct pricing
- Over 10 years of manufacturing experience
- Professional technical support
- Worldwide shipping available
- Fast spare parts supply
- Custom wire processing solutions
- Reliable after-sales service
Learn more about our manufacturing capabilities on our About Us page.
Request a Free Quote
Looking for a reliable pneumatic wire stripping machine for your production line? Contact our team today to receive machine specifications, pricing, and professional application recommendations.
Frequently Asked Questions
Does the machine require electricity?
No. The KK Pneumatic Wire Stripping Machine operates entirely on compressed air and does not require electrical power.
What wire sizes can it process?
The machine supports wire sizes from AWG 32 to AWG 12 (0.03–4 mm²).
Can it perform partial stripping?
Yes. The machine supports both full strip and partial strip operations.
How fast is the machine?
Depending on operator proficiency, production capacity reaches approximately 1,800–2,000 wires per hour.
Is blade replacement required for different wire types?
No. The universal 90° V-blade design allows processing of multiple wire types without changing blades.
