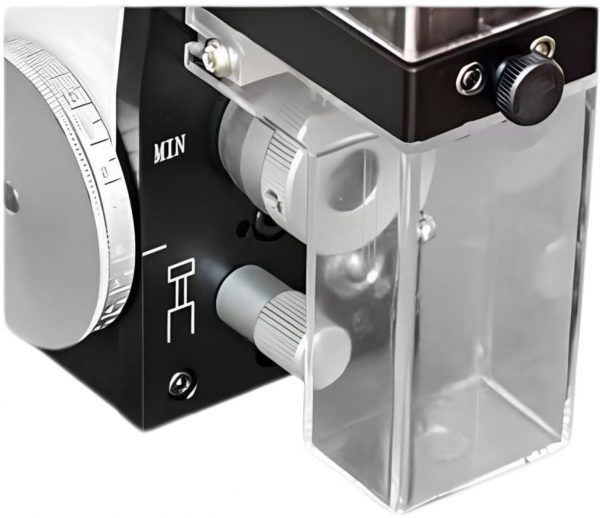

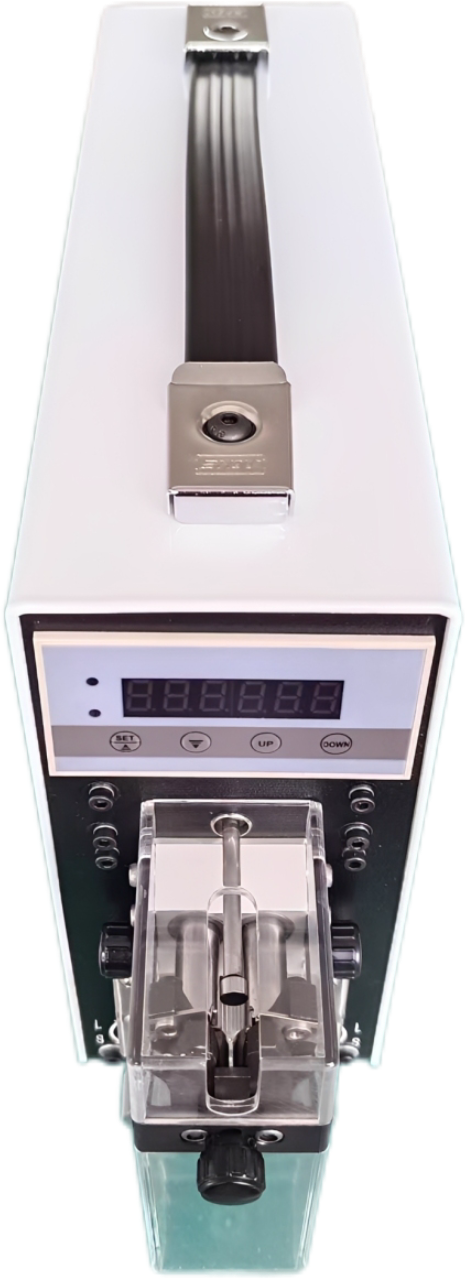

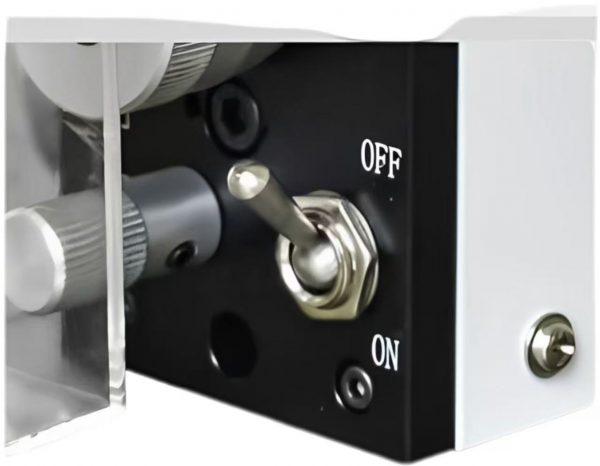

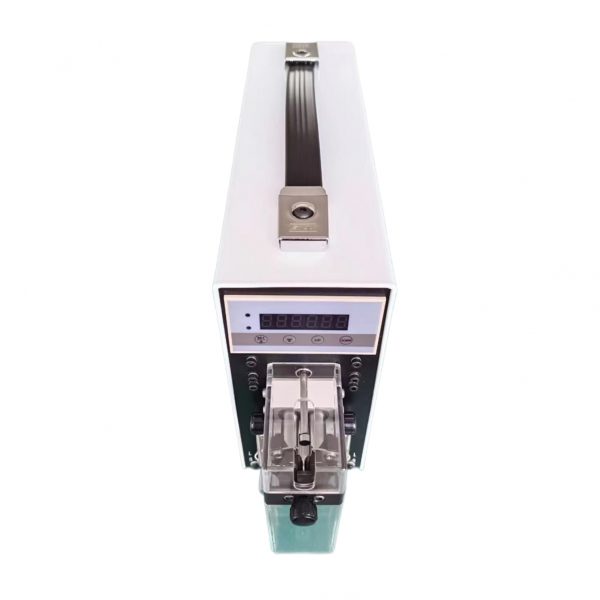

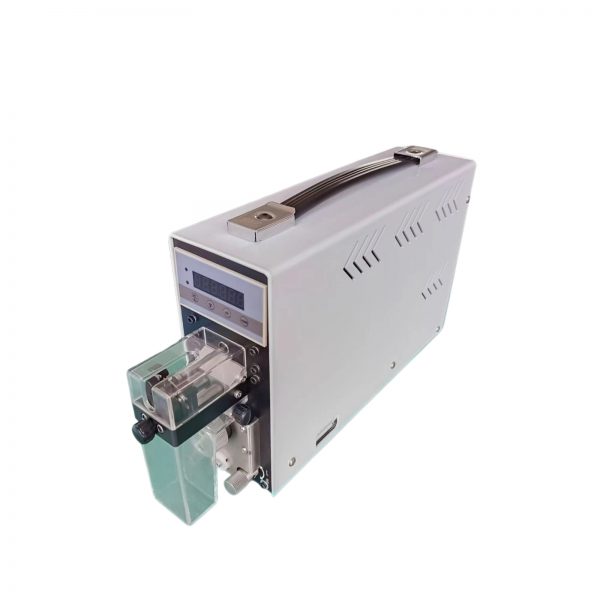

KK-SmartStrip E Electric Wire Stripping Machine for AWG 32–12 Wires
The KK-SmartStrip E Electric Wire Stripping Machine is a compact and fully electric wire processing solution designed for manufacturers who need fast, accurate, and repeatable stripping performance. Supporting wire sizes from 0.03–4 mm² (AWG 32–12), this machine combines portability, precision, and ease of operation in a single workstation.
Unlike traditional pneumatic stripping equipment, the KK-SmartStrip E only requires a standard power supply. Its universal 90° V-blade design eliminates frequent blade changes and allows operators to process multiple wire types with minimal setup time. Whether you’re producing wire harnesses, electronic assemblies, automotive cables, or industrial control wiring, this machine helps improve productivity while maintaining excellent stripping quality.
Looking for complete wire processing solutions? Explore our full range of Wire Processing Machines.
Why Choose the KK-SmartStrip E Electric Wire Stripping Machine?
Many manufacturers struggle with frequent setup changes, inconsistent stripping quality, and limited workspace. The KK-SmartStrip E addresses these challenges through a compact design, tool-free adjustment system, and intelligent operating modes.
- ⚡ Plug-and-play operation with no compressed air required
- ⚡ Dual activation modes: touch sensor and foot pedal
- ⚡ Universal 90° V-blade processes multiple wire types without blade changes
- ⚡ Tool-free adjustment of stripping length and cutting depth
- ⚡ Compact design weighing only 5.8 kg
- ⚡ Fast stripping cycle of approximately 0.3 seconds
- ⚡ Suitable for PVC, PUR, rubber, stranded, and solid-core wires
- ⚡ High adjustment accuracy down to 0.01 mm
Applications of the KK-SmartStrip E
The KK-SmartStrip E is designed for manufacturers that require flexibility and precision across a wide range of wire processing applications.
- Automotive wire harness production
- Electronic cable assembly
- Industrial control cabinet wiring
- Medical device cable preparation
- Telecommunications cable manufacturing
- Prototype and laboratory production
- Small and medium batch wire processing
Need terminal processing after stripping? View our complete range of Automatic Terminal Crimping Machines.
Supported Wire Types
One of the biggest advantages of the KK-SmartStrip E is its ability to process multiple wire types without changing blades.
- Discrete Wire
- Solid Wire
- Stranded Wire
- Single-Conductor Cable
- PVC Cable
- PUR Cable
- Rubber Insulated Wire
- Electronic Wire
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | KK-SmartStrip E |
| Wire Cross Section | 0.03–4 mm² (AWG 32–12) |
| Maximum Cable Diameter | 4.0 mm (0.12″) |
| Maximum Strip Length | 20 mm |
| Partial Strip Length | ≥ 5 mm |
| Full Strip Increment | 1.5 mm |
| Diameter Adjustment Precision | 0.01 mm |
| Cycle Time | Approx. 0.3 seconds |
| Dimensions (L × W × H) | 380 × 195 × 90 mm |
| Weight | 5.8 kg |
| Operation Type | Fully Electric |
Productivity Benefits for Manufacturers
Traditional manual wire stripping methods can slow down production and create inconsistencies between operators. The KK-SmartStrip E delivers consistent stripping quality through precision blade adjustment and intelligent control systems.
Its 0.3-second cycle time significantly improves throughput, while the universal blade system minimizes downtime during wire changes. The result is higher productivity, reduced labor costs, and more consistent product quality.
For complete automated wire processing lines, explore our Wire Cutting Machines and Tinning Machines.
Why Manufacturers Choose Cable Machineries
- Over 10 years of wire processing equipment manufacturing experience
- Factory-direct pricing with no middlemen
- Professional technical support and training
- Global shipping and after-sales service
- Customized solutions for special wire applications
- Reliable spare parts support
Learn more about our manufacturing capabilities on our About Us page.
Request a Quote Today
Looking for a compact, reliable, and easy-to-use electric wire stripping machine? The KK-SmartStrip E is designed to improve productivity while maintaining exceptional stripping quality across a wide range of wire types.
Frequently Asked Questions
Does the KK-SmartStrip E require compressed air?
No. The machine is fully electric and only requires a standard power connection.
What wire sizes can the machine process?
The machine supports wire sizes from 0.03 mm² to 4 mm², equivalent to AWG 32–12.
Can it process PVC and PUR cables?
Yes. The universal V-blade design supports PVC, PUR, rubber-insulated, stranded, and solid-core wires.
How fast is the stripping cycle?
The KK-SmartStrip E completes a stripping cycle in approximately 0.3 seconds.
Is the machine suitable for wire harness manufacturing?
Absolutely. It is widely used in wire harness production, electronics assembly, automotive wiring, and industrial cable processing applications.
