Laser Marking Heat Shrink Tubing Machine | Automatic Tube Marking, Cutting & Shrinking System

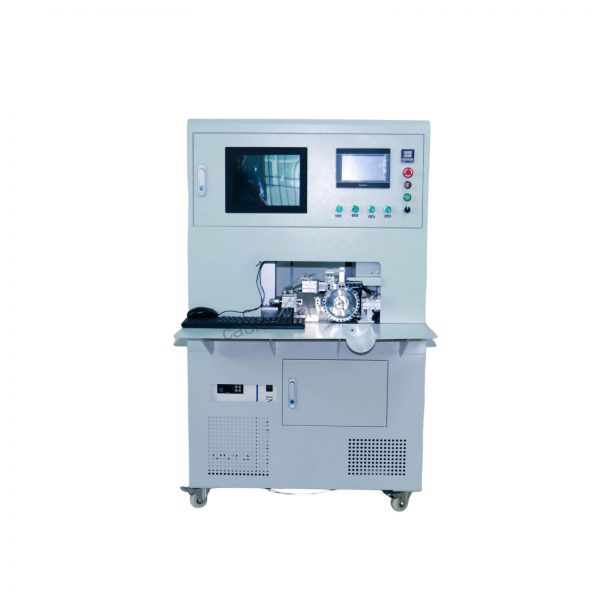

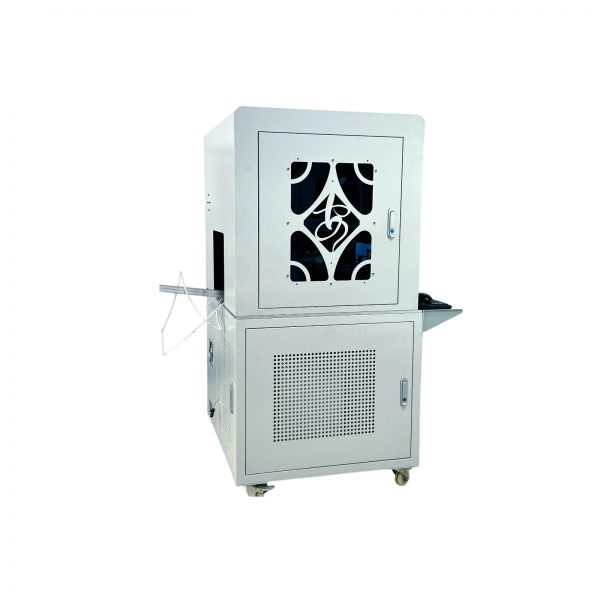

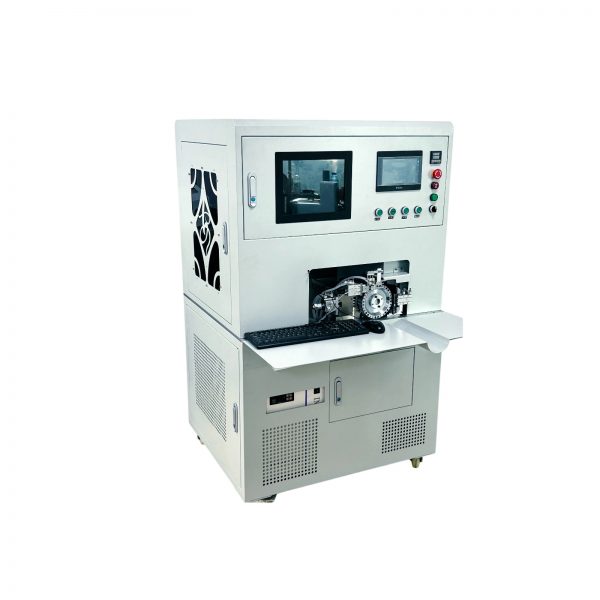

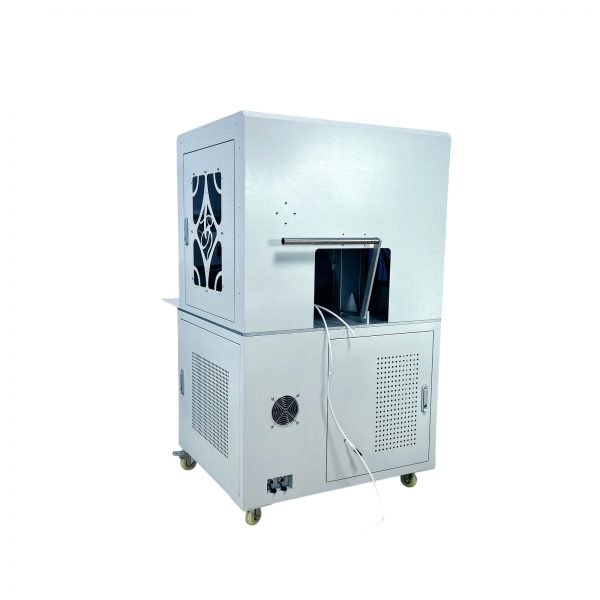

The KK-1016 Laser Marking Heat Shrink Tubing Machine is a fully automated solution that integrates laser marking, tubing feeding, cutting, and heat shrinking into a single production process. Designed for wire harness manufacturers, electrical equipment producers, and industrial cable assembly applications, the system dramatically improves productivity while ensuring clear and durable sleeve identification.
Unlike conventional manual operations that require separate machines and multiple operators, the KK-1016 automatically completes the entire workflow from tubing feeding to finished product output. This significantly reduces labor costs, minimizes human error, and improves production consistency.
Explore our complete range of Wire Processing Machines for additional automation solutions.
Key Features & Advantages
- ✔ Fully automatic feeding, marking, cutting, and shrinking process
- ✔ Integrated laser marking system for permanent identification
- ✔ PLC control with touchscreen HMI for simple operation
- ✔ Processes approximately 1,500 pieces per hour
- ✔ Significantly reduces labor and production costs
- ✔ Consistent marking quality and shrink performance
- ✔ Supports customized tubing specifications
- ✔ Suitable for mass production environments
- ✔ Stable operation with industrial-grade components
- ✔ Compact production footprint for factory automation
Automated Production Process
The KK-1016 combines multiple manufacturing steps into one continuous automated workflow:
Automatic Tubing Feeding → Laser Marking → Precision Cutting → Heat Shrinking → Finished Product Removal
This integrated process eliminates manual material handling and improves production consistency across large-volume manufacturing operations.
Applications
- Wire Harness Manufacturing
- Automotive Wiring Systems
- Electrical Control Cabinets
- Industrial Equipment Manufacturing
- Railway Cable Assemblies
- Aerospace Identification Sleeves
- Telecommunication Equipment
- Power Distribution Systems
For additional cable processing equipment, visit our Heat Shrink Tubing Machines.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | KK-1016 |
| Power Supply | AC 220V |
| Frequency | 50/60 Hz |
| Rated Power | 1200 W |
| Application | Laser Marking on Heat Shrink Tubing |
| Production Capacity | Approx. 1,500 pcs/hour |
| Dimensions | 900 × 1020 × 1480 mm |
| Total Weight | 200 kg |
Standard Configuration
| Component | Model | Brand |
|---|---|---|
| Heating Element | HX14-150mm | Custom |
| Photoelectric Sensor | FC-SPX305Z | Jinchi |
| Stepper Motor | SL86S2100A13 | Shenli |
| Cylinder | Industrial Grade | Xingchen |
| PLC Controller | F3U24-24-4H | Guangyong |
| Touchscreen HMI | INI071 | Guangyong |
| Laser Marker | PKS-5 | PKS Laser |
Why Manufacturers Choose Automated Tube Marking Systems
Traditional heat shrink tube processing often involves separate printing, cutting, and shrinking operations. This increases labor requirements and introduces opportunities for errors.
The KK-1016 combines all critical operations into a single automated system, helping manufacturers improve throughput, maintain identification accuracy, and achieve consistent product quality.
Many wire harness manufacturers report substantial reductions in labor costs after implementing automated tubing processing equipment.
Why Buy From Cable Machineries?
- Factory-direct pricing
- Custom machine configuration available
- Professional engineering support
- Worldwide shipping service
- Spare parts availability
- Technical training and after-sales support
- More than 10 years of wire processing equipment experience
Learn more about our manufacturing capabilities on our About Us page.
Request a Free Quote
Looking for a fully automated heat shrink tubing marking solution? Contact our team today to discuss your tubing specifications and production requirements.
Frequently Asked Questions
What is the production capacity of the machine?
The KK-1016 can process approximately 1,500 heat shrink tubes per hour, depending on product specifications.
Can the machine print customized text and identification codes?

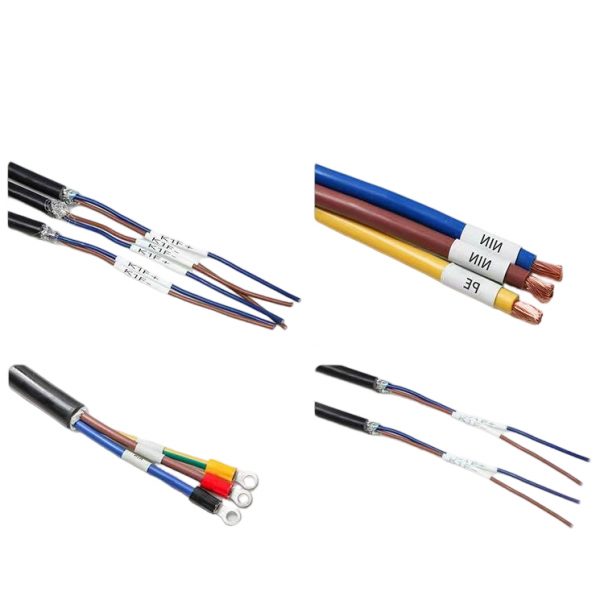

Yes. The integrated laser marking system supports customized markings, serial numbers, identification codes, and product information.
Does the machine perform cutting and shrinking automatically?
Yes. Feeding, laser marking, cutting, heat shrinking, and product discharge are completed automatically.
Can the machine be customized?
Yes. We can customize the machine according to tubing dimensions, production requirements, and specific applications.
What industries commonly use this equipment?
Automotive, electrical equipment, telecommunications, railway systems, aerospace, and wire harness manufacturing industries widely use this technology.
