Semi Automatic Soldering Machine | Wire & Cable Tin Soldering Equipment

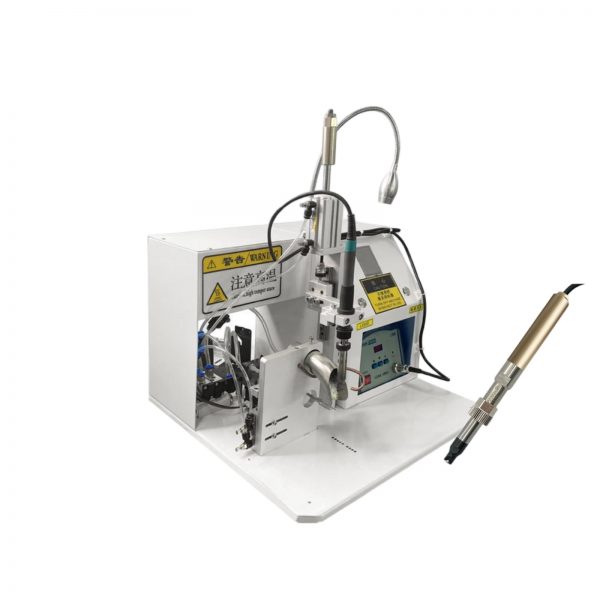

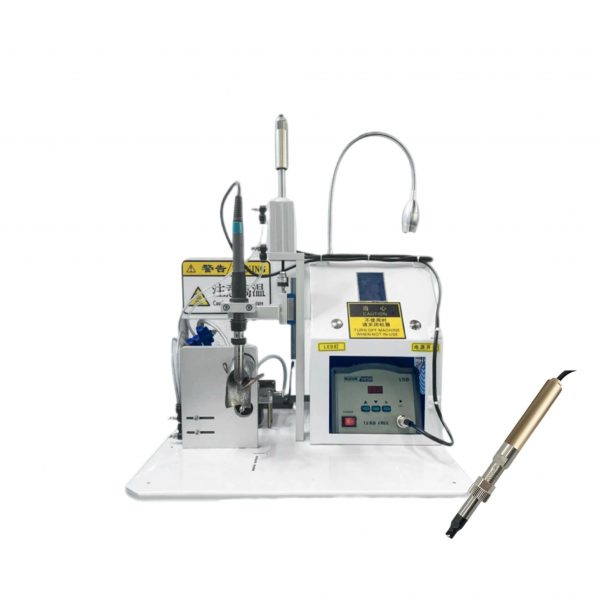

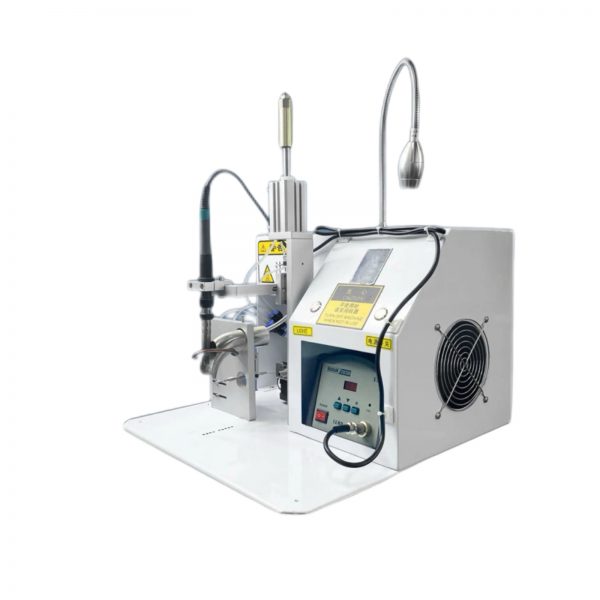

The Semi Automatic Soldering Machine is a compact desktop solution designed for efficient and consistent wire soldering applications. Combining PLC control, touchscreen operation, pneumatic actuation, and adjustable solder feeding, this machine delivers stable soldering quality while reducing operator fatigue and production variability.
Suitable for wire harness manufacturers, electronic assembly plants, appliance production lines, and cable processing facilities, this machine supports both flat welding and oblique welding modes to accommodate different product requirements.
Explore our complete range of Wire Processing Machines to build a fully integrated production line.
Key Features & Advantages
- ✔ PLC control system with color touchscreen HMI
- ✔ Supports both flat and oblique soldering modes
- ✔ Adjustable solder wire feeding length above 1 mm
- ✔ Variable speed control from 1000–2500
- ✔ Password protection and program locking functions
- ✔ Compact desktop structure saving valuable workspace
- ✔ Stable pneumatic operation for repeatable solder joints
- ✔ Easy tip replacement and maintenance
- ✔ Suitable for continuous production environments
- ✔ Improves soldering consistency while reducing labor intensity
Applications
The Semi Automatic Soldering Machine is widely used across industries requiring reliable soldered wire connections.
- Wire harness manufacturing
- Electronic assembly production
- Automotive cable processing
- Home appliance wiring
- Control cabinet assembly
- LED lighting production
- Telecommunication equipment manufacturing
- Medical cable assembly
For complete wire processing solutions, explore our
Terminal Crimping Machines
and
Wire Tinning Machines.
Technical Specifications
| Category | Specification |
|---|---|
| Machine Type | Semi Automatic Soldering Machine |
| Controller | Zhongda Youkong PLC |
| Human Machine Interface | Color Touch Screen |
| Power Supply | 220V / 50Hz |
| Dimensions (L×W×H) | 400 × 400 × 450 mm |
| Machine Weight | 20 kg |
| Working Pressure | 4–6 kgf/cm² (0.4–0.6 MPa) |
| Tin Feeding Length | Adjustable, ＞1 mm |
| Speed Range | 1000–2500 |
| Operating Modes | Flat Welding / Oblique Welding |
| Password Protection | Default Password: 10086 (Customizable) |
| Program Lock | Self-locking Function Available |
Operation & Maintenance Guide
| Procedure | Key Steps |
|---|---|
| Initial Setup | Connect 220V power supply and compressed air source (0.4–0.6 MPa). |
| Parameter Setting | Adjust solder feeding length, speed, and perform output reset. |
| Advanced Settings | Enter password to switch programs and configure security settings. |
| Tip Installation | Install soldering tip correctly and tighten securely. |
| Daily Maintenance | Clean tips, tubes, machine surfaces, and verify air pressure. |
Why Choose Semi Automatic Soldering Equipment?
Manual soldering quality often depends heavily on operator skill, resulting in inconsistent joints and variable production efficiency. Semi automatic soldering equipment improves repeatability through controlled solder feeding, stable pneumatic motion, and programmable settings.
By reducing dependence on manual techniques, manufacturers can improve solder quality, shorten training periods, and increase overall production consistency.
Why Choose Cable Machineries?
- Factory-direct pricing
- More than 10 years of manufacturing experience
- Professional engineering support
- Worldwide shipping service
- Customized production solutions
- Fast spare parts availability
- Reliable after-sales support
Learn more about our manufacturing capabilities on our
About Us page.
Request a Free Quote
Looking for a reliable semi automatic soldering solution for your wire processing operation? Contact our team today to receive pricing, technical specifications, and professional recommendations tailored to your application.
Frequently Asked Questions
What soldering modes does the machine support?
The machine supports both flat welding and oblique welding modes.
Can the solder feeding length be adjusted?
Yes. The solder feeding length is fully adjustable and supports settings greater than 1 mm.
Does the machine require compressed air?
Yes. The recommended working pressure is 0.4–0.6 MPa.
Is the operating speed adjustable?
Yes. Operators can adjust the speed between 1000 and 2500 according to production requirements.
Which industries commonly use this machine?
Wire harness, electronics, automotive, appliance, LED lighting, and telecommunications manufacturers commonly use semi automatic soldering equipment.
